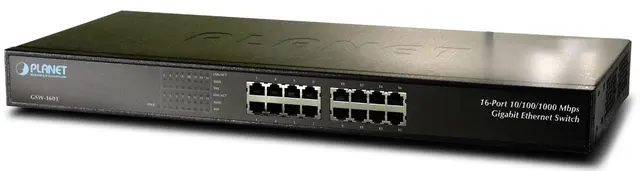

Planet 16-port 10/100/1000Mbps

Gigabit Ethernet Switch

Denne switchen er støyfri (vifteløs)

The PLANET GSW-1601 is 10/100/1000Mbps Gigabit Ethernet switch with 16 ports respectively, and non-blocking wire-speed performance. With a 32Gbps internal switching fabric, the GSW-1601 can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The GSW-1601 has 8K MAC Address table and provides 272KB buffer memory.

The GSW-1601offers wire-speed packets transfer performance without risk of packet loss. The high data throughput of GSW-1601 makes it ideal for most Gigabit environments, especially while network upgrades to a Gigabit environment.

All RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. Support is standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

The Flow Control function allows your Gigabit switch supported routers and servers to directly connect to this switch for fast, reliable data transfer.

Key Features:

Complies with IEEE802.3, 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T 16-Port 10/100/1000Mbps Gigabit Ethernet ports Features Store-and-Forward mode with wire-speed filtering and forwarding rates Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation IEEE802.3x flow control for full duplex operation and Backpressure for half duplex operation Integrated address look-up engine, support 8K absolute MAC addresses Provide 272KB buffer memory 9K Jumbo packet support Automatic address learning and address aging Supports Auto MDI/MDI-X function Support CSMA/CD protocol 100~240VAC, 3.0A, 50~60Hz universal Power input FCC, CE class A compliant

Se "Produkt" link for mer informasjon
