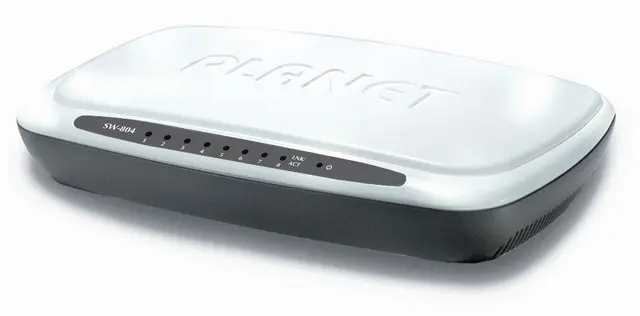

Planet 8-Port 10/100Mbps

Desktop Fast Ethernet Switch

• 8-Port 10/100Mbps TP interfaces

• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

• IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex

operation

• Features Store-and-Forward mode with wire-speed filtering and forwarding rates

• Supports 1K absolute MAC address

• Supports to handle up to 1552bytes packet

• Automatic address learning and address aging

• Supports Automatic MDI / MDI-X function

• Full / Half-Duplex capability on each TX port

• LED indicators for simple diagnostics and management

• FCC Class B, CE compliant

Specification

Model SW-804

Hardware Specification

Network Connector 8-Port RJ-45 for 10/100Base-TX

Switch Throughput 1.19Mpps

Switch Fabric 1.6Gbps

MAC Address 1K MAC address table with Auto learning function

Shared Buffer 768K

Power Requirement 9V DC, 700mA

Operating Environment 0~50 Degree C, 5%~95% RH

Storage Environment -20~70 Degree C, 5%~95% RH

Dimension (W x D x H) 184 × 110 × 30 mm

Switch Specification

Switch Architecture Store-and-Forward

Flow Control IEEE 802.3x full duplex operating and flow control

Standard Compliance

Network Standard IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3x Flow Control and Back pressure

EMI FCC Class B, CE
