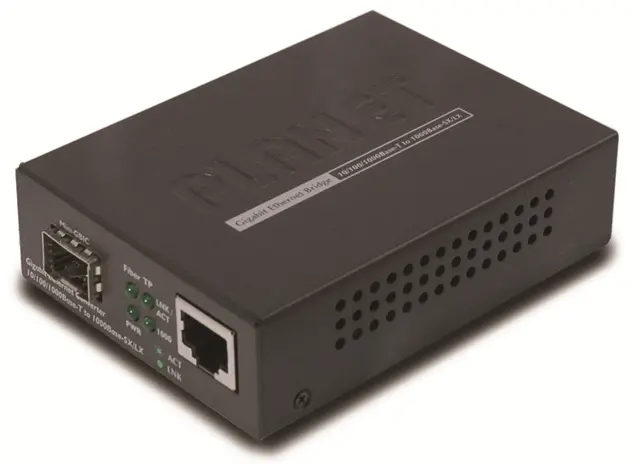

Planet Mediakonverter

10/100/1000TX - 1000BaseSX/LX (mini-GBIC)

Mini-GBIC modul er ikke inkludert. (Se tilbehør)

Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network.

Designed in compact size, the GT-80X can be used as a standalone unit or being installed in the media converter chassis such as the PLANET MC-700/MC-1000R/MC-1500 ( 7/10/15-slot Media Converter Chassis to build a centralized fiber-optic network. The media chassis can feed GT-80X power to maintain the fiber-optic network at one location.

As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM (TS-1000 and IEEE 802.3ah) terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.

Key Features

• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX

• TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X

• 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters

• Auto-Negotiation for 10/100/1000Base-T; Half-Duplex or Full-Duplex for 10Mbps and 100Mbps

• Layer 2 key Feature

• IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets

• Support auto MDI/MDI-X function

• Store-and-Forward mechanism

• Non-blocking full wire-speed forwarding rate

• Media conversion between 10/100/1000Base-T and 1000Base-SX/LX

• Fiber media allows: -Multi-mode fiber using SC/LC/WDM connector -Single-mode fiber using SC/LC/WDM connector

• Compacts size for easy installation and working with PLANET MC family Media Chassis ( MC-700 / MC-1000R / MC-1500)

• Wall-Mountable design

• LED indicators for easy network diagnose

• Choice of fiber-connector from SC, LC and WDM, multi-mode / single-mode fiber for 1000Base SFP interface

• 9K Jumbo Frame Supported

• OAM (TS-1000 and IEEE 802.3ah) supported
