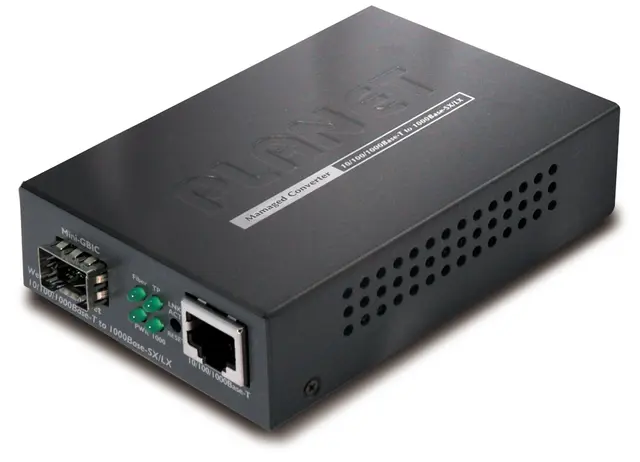

Planet GT-905A

Managed Gigabit Ethernet Media Converter 10/100/1000Base-T to mini-GBIC Managed Media Converter Key Features • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX • One-channel media conversion between 10/100/1000Base-T and 1000Base-SX / LX • TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X • 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters • Compact size for working with PLANET MC family Media Chassis (MC-700/1000R/1500) • Wall-mountable hardware design • Built-in IP-based Web interface for remote management • Layer 2 Management Feature -Store-and-Forward mechanism -Built-in Web interface for remote management and setup -Manual IP address setting / DHCP client for IP address assignment -SNMP v1 / v2c monitor / private Enterprise MIB -Event trap and SNMP trap support -Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port -Supports Port Status / Ethernet Statistics on both TP and Fiber interface -Supports Maximum frame size to 16K bytes -Loop detection / Broadcast / Multicast / Unicast storm control -Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN -802.1p Tag Priority / IP address priority / IP DSCP option in Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies -TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test -16 TCP / UDP Filter groups -Password setting, IP setting and devices description setting through Planet Smart discovery utility -Firmware upgrade via remote Web interface • External DC 5V 2A power supply • LED indicators for easy network diagnosing • Reset Button at the front panel for the factory default reset • Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module
