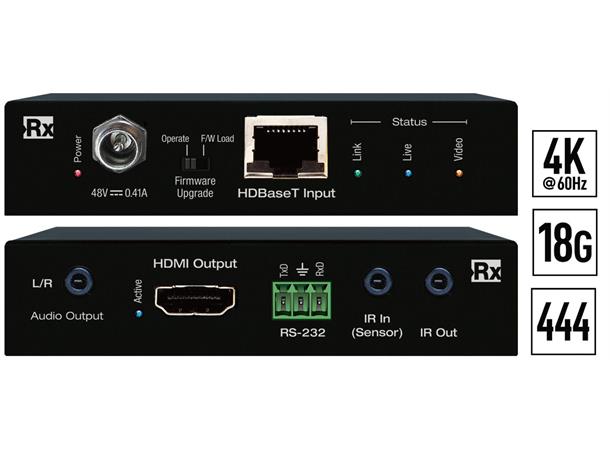

Key Digital KD-X40MRx 4K/18G HDBaseT Rx

HDMI over CAT 4K/40m 1080/70m

Varenr:122701

Alt varenr:KD-X40MRx

3 690,-ink. mva

Bestillingsvare

Beskrivelse

Tx Options: Sold a-la-carte to integrate natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters (sold separately).
Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X2x1WDTx / KD-X2x1WVTx. Rx is powered by Tx when integrated with KD-PS42 / KD-UPS42
Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R audio connection for ease of integration with audio systems
CEC Manager™: Passes through CEC control signals for monitors & projectors when integrated with KD-PS42 / KD-UPS42.
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Low Profile: Super slim chassis design
Signal Extension: For resolution and cable quality
- 4K/UHD (18G): Up to 40m / 131ft
- 1080p: Up to 70m / 230ft
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
