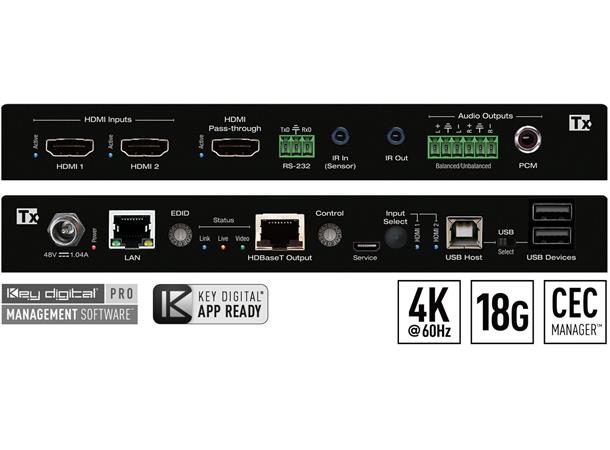

Key Digital KD-PS22UTx, 4K/18G 100m

2xHDMI over CAT 4K/100m 1080/150m

Varenr:122700

Alt varenr:KD-PS22UTx

13 890,-ink. mva

Bestillingsvare

Beskrivelse

Presentation Switching: 2 HDMI Source selection by push button or IP control
Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switchers
Soft-Codec Enabling System: USB Host + Device ports on wall plate and chosen Rx / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
KDPlug & Present: Add KD-CX800 to build programming-free automation system for room display on / off, screen control, auto switching, KD-CAMUSB PTZ camera, KD-AMP220 amp with mic mix, and common video source control
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
ARC / eARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate HDBaseT transmission channel
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
HDR10: More life-like images through a greater range of luminance levels
Power Over HDBaseT: Unit powered by Rx/Presentation Switch unit
Signal Extension: For resolution and cable quality
4K/UHD (18G): Up to 100m / 328ft
1080p: Up to 150m / 492ft (Long Range Mode)
Long Range Mode: Extends 1080p signals up to 152m (500 ft.) using CAT5e/6 (UHD/4K not supported)
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
IR Bi-Directional control: Tx supports IR input via the included IR sensor and output via the included IR emitter
RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
Unit Control Mode: Provides TCP/IP control and status of/from Tx unit
Surround Sound Audio: Supports Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™ multi-channel audio formats
Control System Support: Key Digital® App Ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
