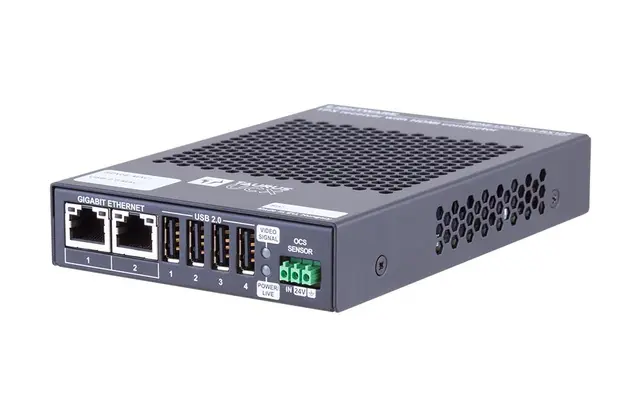

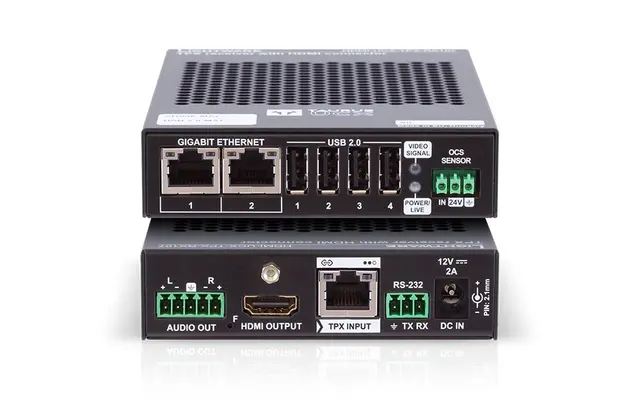

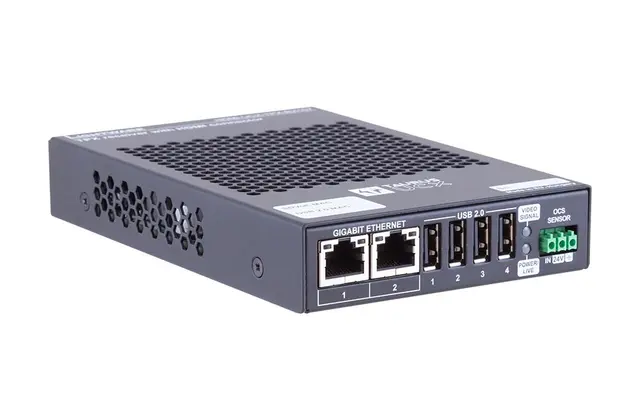

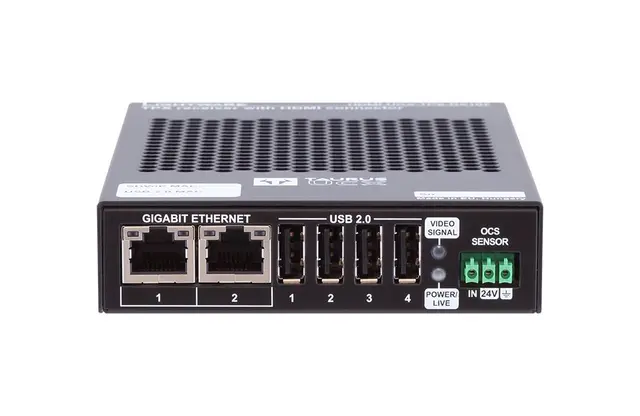

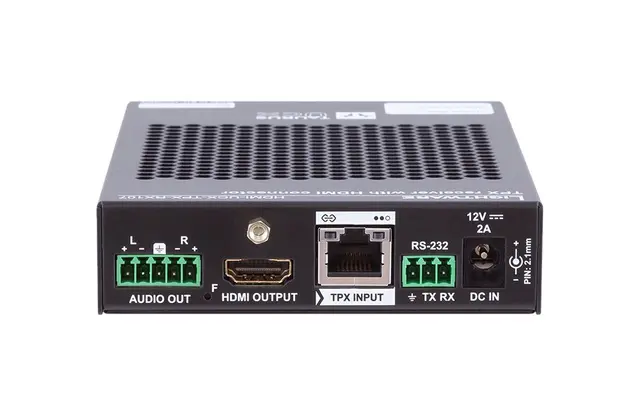

UCX Matrix Switcher Receiver

UCX Matrix Switcher receiver is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management and connectivity.

Highlighted features

• Single CAT connectivity between TX and RX devices, up to 100m, with Power delivery from TX to RX, Video, USB2.0, Ethernet, OCS and Serial
• USB-C input connectivity on the TX device for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
• USB-C charging up to 100W (120W total) on the TX
• Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.) Both on the TX and the RX
• Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
• Room device control via Ethernet (TCP/IP) or Serial (2x at TX device, 1x at RX device)
