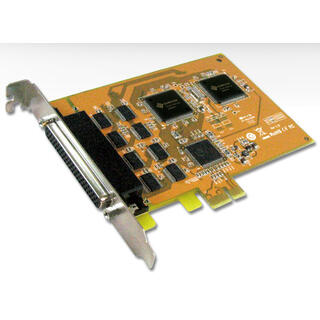

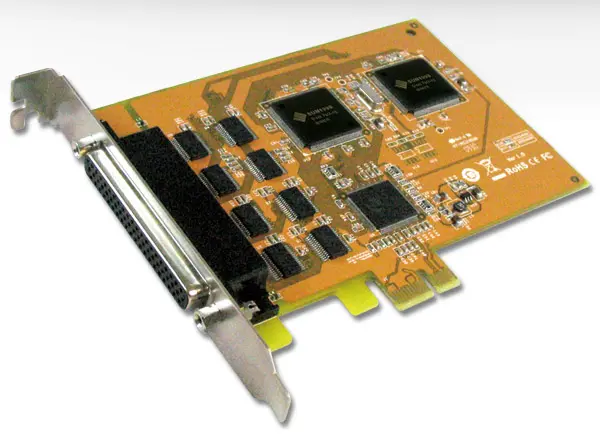

Sunix SER5466H

8-port RS-232 High Speed PCI Express Serial Board Introduction SUNIX SER5466H, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus. The majorities of today's motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add eight serial ports to their system, allowing them to use serial devices further. SUNIX SER5466H card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications. Features Expands 8 independent RS-232 serial ports with communication speeds up to 921.6Kbps. High speed SUN1999 16C950 compatible UART controller on-board. Designed to meet PCI Express Base Specification Revision 1.1. Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys. On-chip hardware auto flow control to guarantee no data loss. Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard. Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS. Specifications Serial Communication Interface: RS-232 Controller: SUNIX SUN1999 (16C950 UART Compatible) Bus: PCI Express one lane (x1) No. of Port: 8-port IRQ & IO: Assigned by System FIFO: 128 byte (Hardware) Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND Baud rate: 50 bps to 921.6 Kbps Data bit: 5,6,7,8 Stop bit: 1,1.5,2 Parity: None, Even, Odd, Space, Mark Flow Control: None, Xon/Xoff, RTS/CTS Protection ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge PCB connector: DB62 Female Driver Support: Microsoft Client Windows XP/Vista/7 (X86/X64) Microsoft Server Windows 2000/2003/2008 (X86/X64) Microsoft Embedded: Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7 Linux: Linux 2.4.x / 2.6.x / 3.x DOS FreeBSD: FreeBSD 5.3~5.5 / 6.0~6.4 QNX: QNX 6.3.2/6.4.0 * IBM OS/2: WARP 3/WARP 4 * SCO UnixWare: UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0 * Sun Microsystems: Solaris 10 Note :  *  Supported by special inquiry. Regulatory Approvals Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS Software Microsoft WHQL Windows • Microsoft Client: XP/Vista/7 (X86/X64) • Microsoft Server: 2000/2003/2008 (X86/X64) Environment Operation Temperature 0 to 60°C (32 to 140°F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 85°C (-4 to 185°F) Dimension PCB Dimension: 127 x 98 mm Bracket: Standard 121 mm Bracket Space: 1
