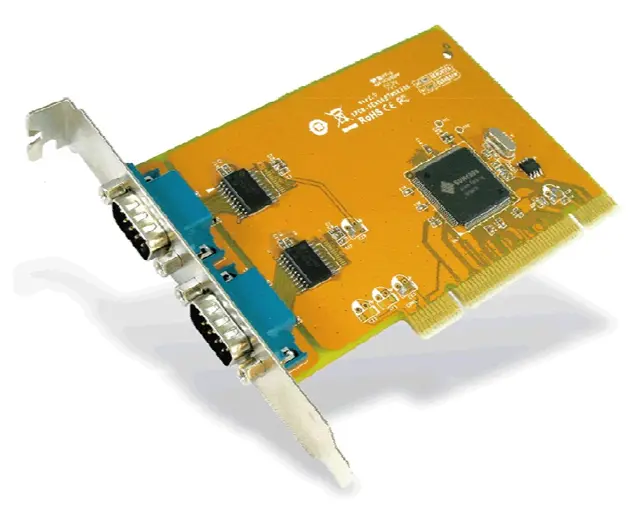

Sunix SER5037A

2-port RS-232 Universal PCI Serial Board Features Expands 2 independent RS-232 serial port with communication speeds up to 115.2Kbps. High reliability SUN1989 16C950 compatible UART controller on-board. Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification. Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power. On-chip hardware auto flow control to guarantee no data loss. Built-in ± 2KV ESD protection for all serial signals. Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS. Specifications Serial Communication Interface RS-232 Controller SUNIX SUN1989 (16C950 UART Compatible) Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 No. of Port 2-port IRQ & IO Assigned by System FIFO 128 byte (Hardware) Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI Baud rate 50 bps to 115.2 Kbps Data bit 5,6,7,8 Stop bit 1,1.5,2 Parity None, Even, Odd, Space, Mark Flow Control None, Xon/Xoff, RTS/CTS Protection ±2KV ESD protection for each signal Human Body Model (HBM) PCB connector DB9 Male Driver Support Microsoft Client Windows XP/Vista/7 (X86/X64) Microsoft Server Windows 2000/2003/2008 (X86/X64) Microsoft Embedded Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009 Linux Linux 2.4.x / 2.6.x DOS DOS FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4 QNX QNX 6.3.2/6.4.0 * IBM OS/2 WARP 3/WARP 4 * SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0 * Sun Microsystems Solaris 10 Note :  *  Supported by special inquiry. Regulatory Approvals Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS Software Microsoft WHQL Windows • Microsoft Client: XP/Vista/7 (X86/X64) • Microsoft Server: 2000/2003/2008 (X86/X64) Environment Operation Temperature 0 to 60°C (32 to 140°F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 85°C (-4 to 185°F) Dimension PCB Dimension 120 x 82 mm Bracket Standard 121 mm Bracket Space 1
