Sennheiser EW100 ME3 Trådløst hodebøyle

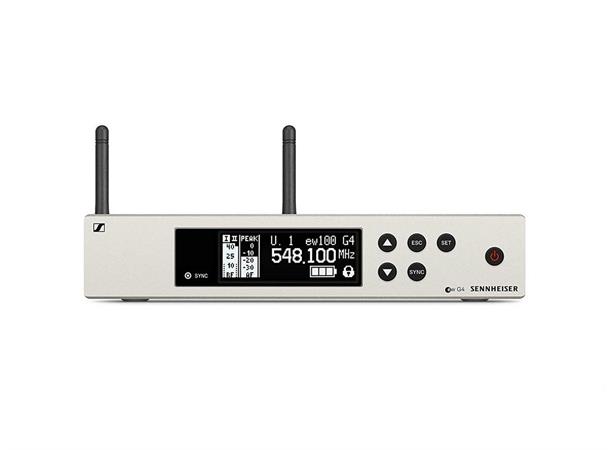

EM 100 G4

• Frequency range

  A1: 470 - 516 MHz

  A: 516 - 558 MHz

  AS: 520 - 558 MHz

  GB: 606 - 648 MHz

  G: 566 - 608 MHz

  B: 626 - 668 MHz

  C: 734 - 776 MHz

  D: 780 - 822 MHz

  E: 823 - 865 MHz

  1G8: 1785 - 1800 MHz

  JB: 806 - 810 MHz

  K+: 925 - 937,5 MHz

• Dimensions

  Approx. 190 x 212 x 43 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ? 0.9 %

• Weight

  Approx. 980 g

• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu

• Signal-to-noise ratio

  ? 110 dBA

• Switching bandwidth

  up to 42 MHz

• Peak deviation

  ±48 kHz

• Nominal deviation

  ±24 kHz

• Modulation

  Wideband FM

• Power supply

  12 V DC

• Antenna connector

  2 BNC sockets

• Current consumption

  300 mA

• Adjacent channel rejection

  Typically ? 65 dB

• Intermodulation attenuation

  Typically ? 65 dB

• Receiving frequency

  Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• RF sensitivity

  < , 2.5 ?V for 52 dBA eff S/N

• Squelch

  low: 5 dBµV middle: 15 dBµV high: 25 dB?V

• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range

  -10 °C to +55 °C

• Receiver Principle

  True diversity

• Blocking

  ? 70 dB

SK 100 G4

• Dimensions

  Approx. 82 x 64 x 24 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ? 0.9 %

• Weight

  (incl. batteries) approx. 160 g

• Signal-to-noise ratio

  ? 110 dBA

• RF output power

  Max. 30 mW

• Switching bandwidth

  up to 42 MHz

• Peak deviation

  ±48 kHz

• Nominal deviation

  ±24 kHz

• Operating time

  Typically 8 h

• Modulation

  Wideband FM

• Power supply

  2 AA batteries, 1.5 V or BA 2015 accupack

• Current consumption

  at nominal voltage: typ. 180 mA

  with transmitter switched off: ? 25 µA

• Input impedance

  40 k?, unbalanced / 1 M?

• Max. Input voltage

  3 Veff

• Powering

  3 V battery / 2.4 V rechargeable battery

• Transmission frequency

  Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• AF frequency response

  Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz

• Temperature Range

  -10 °C to +55 °C

• Frequency stability

  ? ±15 ppm

ME 3

• Connector

  3.5 mm jack

• Sound pressure level (SPL)

  150 dB SPL

• Cable length

  approx. 1.60 m

• Transducer principle

  pre-polarized condensor microphone

• Pick-up pattern

  cardioid

• Sensitivity

  1.6 mV/Pa

• Temperature Range

  -10 °C to +55 °C

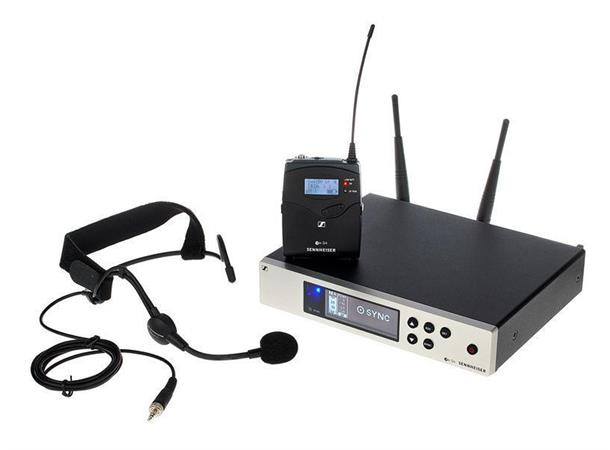

What's in the Box

• EM 100 G4 true diversity receiver
• SK 100 G4 bodypack transmitter
• ME 3 headset microphone
• GA 3 rackmount set
• power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• quick guide
• safety guide
• manufacturer declaration sheet
• frequency supplement sheet
