Audac EPA254 Vifteløs forsterker Klasse D - 4x250w at 4ohm, 1HE Audac EPA254 Vifteløs forsterker Klasse D - 4x250w at 4ohm, 1HE

Audac EPA254 Vifteløs forsterker

Klasse D - 4x250w at 4ohm, 1HE

Varenr:123097
Alt varenr:EPA254
10 370,-ink. mva
-+
Bestillingsvare
BeskrivelseSupport
Beskrivelse

This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations.



Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability.



The quad channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet.

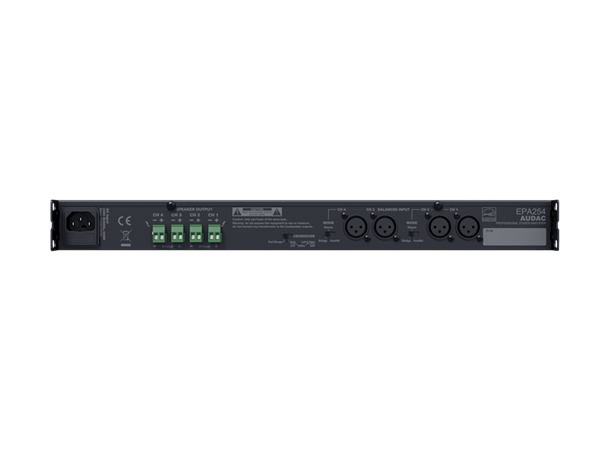

Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors. Outputs are connected using terminal block connectors.

TEKNISK INFO
SYSTEM SPECIFICATIONS
Signal / Noise> 90 dB
THD+N (@ 1 kHz)< 0.1%
Crosstalk (@ 1 kHz)> 70 dB
TechnologyClass-D
ProtectionDC Short circuit
Over heating
Over load
Signal limiting
CoolingConvection cooled
Operating temperature0° ~ 40° @ 95% Humidity
FrequencyResponse (± 3 dB)20 Hz - 20 kHz
PowerSupplySwitching mode
230 ~ 240 V AC / 50 ~ 60 Hz
Consumption438 W
InputsSensitivity (1W/1m)0 dB (1V RMS)
Impedance12 k? balanced
Connector3-pin XLR female
OutputsConnector2-pin Euro Terminal Block (Pitch - 5.08 mm)
PowerConsumptionStandby0.7 Watt (30 min standby time)
RMS Power@ 4 ? Stereo4 x 250 W
@ 8 ? Bridge2 x 500 W
@ 8 ? Stereo4 x 130 W
PRODUCT FEATURES
Dimensions482 x 44 x 330 mm (W x H x D)
Weight4.700 kg
Mounting19”
Unit height1 HE
ConstructionSteel
ColoursBlack
