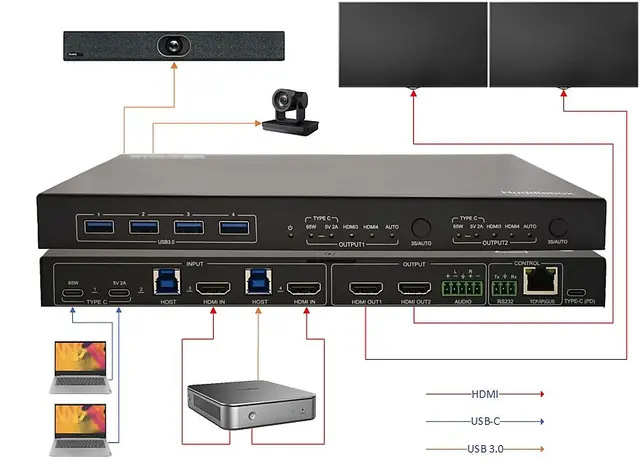

The Huddlebox is a dedicated professional solution for video conference, working as an HDMI2.0 4x2 Matrix switcher with KVM. It includes 2x USB-C, 2x HDMI inputs with USB-B, and 2 HDMI outputs with de-embedded balanced audio.For the USB-C input ports, one provides up to 65W charging, the other provides external 5V2A charging for mobile phones.In the HuddleBox its built in several modes for supporting various needs and applications;
One screen setups:
- Manual Mode
o Fully control your HuddleBox from 3rd party-controller
- Mirror Mode
o Will always duplicate latest input.
Two screens setups:
- Conference Mode – Auto
o HDMI1 & HDMI2 is allocated to each output, when USB-C Connects it uses MST to take over both outputs, working as a BOYD solution for two screens.
- Conference Mode – Static Route
o 1 input fixed to an output
o Rest of inputs autoswitch on the other output
- Manual Mode
o Fully control your HuddleBox from 3rd party-controller
- Mirror Mode
o Will always duplicate latest input on both outputs.
- Matrix Mode
o Will duplicate single sources, when 2nd sources connects, they will automatically switch to latest 2 connected sources
Features |
Video | Supports 18G, 4K@60 4:4:4, HDR10, Dolby Vision, HDCP2.2 compliant |
USB-C supports DP1.2 MST function |
Supports scaling without framerate change |
Power | Power Input 100W PD3.0 Port |
USB-C Port #1 Supports 65W PD3.0 Charging |
USB-C Port #2 Supports 10W 5V2A Charging |
Control | Controllable via front panel, RS232 and TCP/IP (GUI) and Auto-switching |
USB-C Port #1 Supports RS232 communication |
Physical Interface |
| Input | 2 x Type-A HDMI 2.0 |
2 x USB-B USB 3.0 |
2 x Type-C (1x 65W, 1x 10W) |
Output | 2 x Type-A HDMI 2.0 |
1 x 5-pin balanced audio |
Connections | 4 x USB-A USB 3.0 |
1 x 3-pin terminal block for RS232 control |
1 x RJ45 connector for TCP/IP control |
