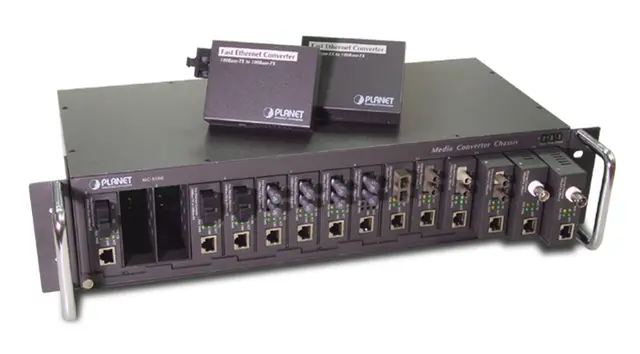

Planet 15-slot Chassis for Mediakonvertere

Passer alle Planet konvertere

Providing more capacity to the converters in one chassis, the MC-1500 provides 15-slot in the 19"-rack saving more spaces for fiber-optic wiring yet ease the maintenance of media conversion.

The MC-1500, media chassis allows the connectivity of up to fifteen PLANET Ethernet/ Fast Ethernet Gigabit Ethernet Converter in one chassis. Two fans with LED indicators for the system cooling and keep you informed in the system and FAN status.

Independentpower supply in each bay of the MC 1500, you can freely install the converters without interrupting the rest of the networks. Moreover, each bay of the media center can deploy to PLANETs converter family like Ethernet, Fast Ethernet twisted pair to Fiber-optic conversion, Gigabit SX to LX conversion, etc.

Key Features:

High quality 19" Rack-Mountable Chassis installation

Supports up to fifteen (15) modular media converters

Two fans brings the air-flow for system cooling, and LED indicators for system and fan status

Bay power isolation, ensure each bay is electrically isolated from each other

Support multiple converters - 10/100/1000Mbps, copper, Fiber, single/multi-mode ST/SC/MTRJconnectors

Reduce the effort of converter maintenance and management, diagnose the status at one time

Cost-effective, easy install

SPECIFICATION

Product

Model

MC-1500

Slot

15 open slot; (27x 95 x 71 mm, WxDxH)

Dimension

438 x 200 x 103mm (W x D x H); 2.4U

Power Requirement

100 ~ 240V AC, 50 ~60Hz

Power output

+5V DC per slot, 1 A minimum

DC Output

+5VDC (+/-1%) per slot

LED indicator

3, Power, Fan A, Fan B (On: operating; Off: device or fan fail)

Environment

Temperature: 0~50 degree C (operating); -20~70 degree C (storage) Humidity: 0~90% (non-condensing)

Compliance

FCC Class A, CE-mark
