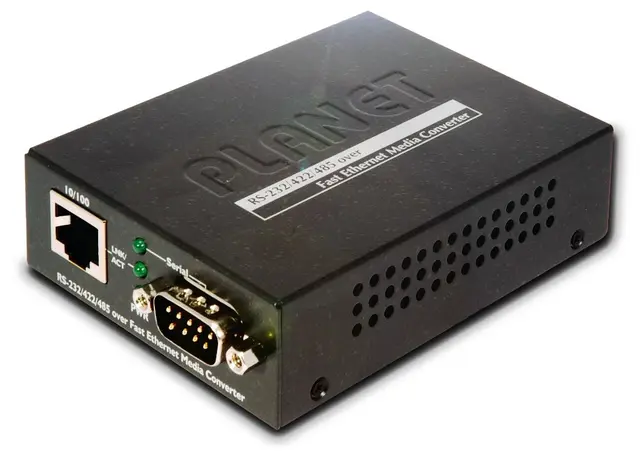

Planet ICS-100

Serial Interface • One RS-232 / 422 / 485 port to one 10/100Base-TX or 100Base-FX Media Converter • Cost effective solution for RS-232 to Ethernet application • Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation • Asynchronous serial data rates up to 921600b/s

Ethernet Interface • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX standard • Supports auto MDI/MDI-X function on RJ-45 Port

Smart Functions • Standard TCP / IP interface and versatile operation modes • Software Protocol Support ARP, ICMP,TCP / IP, UDP, HTTP server, DHCP client, Telnet server/client • Built-in IP-Base Web interface for remote management • Serial Operation mode selected via Web management • Pair Connection mode for connecting two serial devices over a network • PLANET Smart Discovery utility automatically finds PLANET devices on the network • Firmware upgrade via HTTP protocol

Hardware • Compact size for easy Installation: • Standalone - Wall mountable or DIN-Rail mounting (Optional accessory) -Co-work with PLANET MC family Media Chassis ( MC-700 / 1000R / 1500) -LED indicators for easy network diagnose • Reset Button at the front panel for reset to factory default

Specification Model ICS-100 Serial Port Interface RS-232 / RS-422 / RS-485 Connector 3-in-1 DB9 Baud rate (Data Rate) 110bps to 921Kbps Data Bits 5,6,7,8 Stop Bit 1,2 Flow Control None, RTS / CTS, Xon / Xoff Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx- RS-485(2-wire): Data+, Data- RS-485(4-wire): Tx+, Tx-, Rx+, Rx- Fast Ethernet Port Standard 10/100Base-TX Connector RJ-45 Mode - Distance 100m Optical Wavelength - Cable Twisted-pair Protection Built-in 1.5KV magnetic isolation Hardware LED Indicators System: Power TP or Fiber Port: Link / Active Serial Port: Serial port mode, RS-232, RS-422 or RS-485 Management Web Management PLANET Smart Discovery Utility VCOM Operation Mode Virtual COM Port TCP Server TCP Client UDP Client Pair Connection Dimension (W x D x H) 97 x 70 x 26 mm Weight 200g Power Supply External Power Adaptor 5V DC / 2A max. Power Consumption 5.5 Watts (max) Mechanical Metal Environment Operating Temperature: 0~50 Degree C Storage Temperature: -10~70 Degree C Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH Emissions FCC Class A, CE Certification Class A Standards • IEEE 802.3 10Base-T, • IEEE 802.3u 100Base-TX / 100Base-FX • EIA / TIA RS-232 / 422 / 485 Regulatory Approval RoHS Compatible Media Converter Chassis MC-700 / 1000R / 1500 Note Reset Button at the rear panel for reset to factory default
