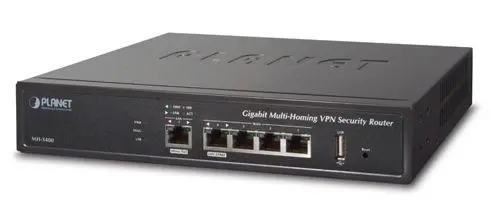

Planet MH-3400

Gigabit Multi-Homing VPN Security Router


Physical Port•1~2 x 10/100/1000 Base-T RJ-45, configurable with LAN 1 (Mirror Port)
•3~4 x 10/100/1000 Base-T RJ-45, configurable with WAN 4 (WAN 4 / LAN2 / DMZ)
•1 x USB 2.0 Host for 3G/3.5G Internet Access
•Multi-WAN Function
•Inbound / Outbound Load Balance: by session and by IP
•Bandwidth expansion with 3~4 Gigabit WAN ports
•Multi-WAN auto line backup



 IP Routing Feature•Dynamic Route RIP v1/v2
•Static Route



 Bandwidth Management•Smart QoS
•Session Limit
•Port-based QoS
•QoS Schedule



 Firewall Security•Stateful Packet Inspection(SPI) Firewall
•Denial of Service (DoS) prevention
•IP & Port Filtering
•Block Website by Keyword, Content Filter
•Firewall Detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing
•Supports DMZ to protect your network: DMZ Host
•Prevents ARP Attack on LAN



 VPN Feature•Configure Concurrent Tunnels: 200 IPSec + 60 PPTP or other combinations within the memory’s limitation
•Supports up to 2 Groups of VPN
•IPSec, PPTP Passthrough



 Networking•DHCP Server (supports class C)
•Multiple DHCP Servers support multiple Subnet (supports 4 sets of Class C)
•PPPoE / Static IP / DHCP Client
•Protocol: TCP/IP, ARP, ICMP, FTP/TFTP, IPv4, IPv6
•NAT with popular ALG support
•Port forwarding
•DNS Relay
•DDNS: supports DynDNS, 3322, No-IP
•Password protected configuration or management sessions for web access
•Port Management – Speed / Duplex / Auto Negotiation
•VLAN Tagging (802.1Q) / Port VLAN
•Transparent Bridge



 3G USB Support•3G/3.5G Internet Access
•Automatic fail-over and load balancing between 3G and WAN
•Auto / manual throughput and time calculation mechanism for cost or dial-on
•Throughput measurement
•APN and PIN code support



 Network Management•Comprehensive web-based management and policy setting
•SNMP v1/v2c (IPv4 only)
•Monitoring, logging, and alarms of system activities
•Firmware upgrade through Web browser
