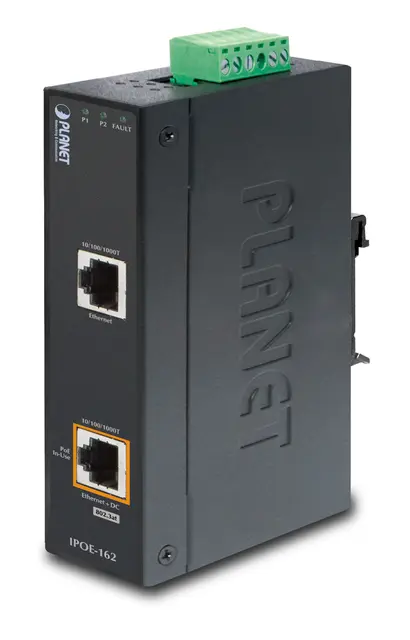

Planet IPOE-162

Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-Span) Key Features Interface • 2-Port RJ-45 interfaces - 1-Port Data + Power output - 1-Port Data input - One terminal block for master and slave power input. (Power Range: 24 ~ 48V DC / 24V AC redundant power) PoE • Gigabit High Power over Ethernet Mid-Span PSE • IEEE 802.3at / 802.3af PoE compliant • IEEE 802.3at / 802.3af splitter devices compatible • Supports PoE Power up to 30 Watts for each PoE port • Provides DC 56V power over RJ-45 Ethernet cable to device with Ethernet port • Auto-detect of IEEE 802.3at equipments and protects devices from being damaged by incorrect installation • Remote power feeding up to 100m Hardware • IP30 Slim Type Metal Case • LED indicators for Power LED and PoE In-use Industrial Case / Installation • DIN Rail and Wall Mount Design • Supports EFT protection 6000 VDC for power line • Supports 6000 VDC Ethernet ESD protection • -40 to 75 Degree C operation temperature Standard Compliance • IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX • IEEE 802.3ab 1000Base-T • IEEE 802.3at / 802.3af Power over Ethernet standard • FCC Part 15 Class A, CE Ordering Information IPOE-162 Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-Span, 30 Watts)
