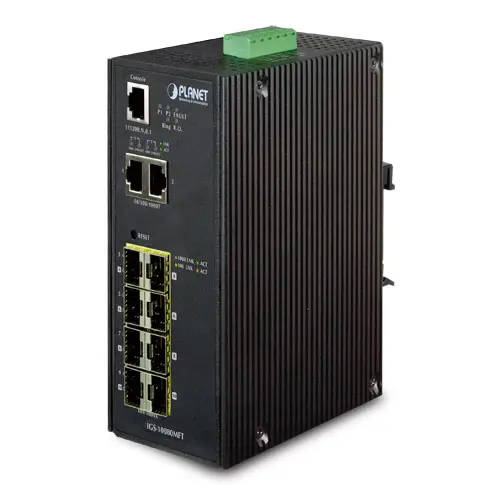

Planet IGS-10080MFT
Industrial 8 100/1000X SFP + 2-Port 10/100/1000T Managed Switch (-40 ~ 75 Degree C)
Nøkkelfunksjoner:
Physical Port
- 8 100/1000Base-SX/LX mini-GBIC SFP slots
- 2 10/100/1000Base-T Ethernet interface
Industrial Case / Installation
- IP30 Aluminum case protection
- DIN-Rail and Wall Mount Design
- Redundant Power Design
- - 12 to 48V DC, redundant power with polarity reverse protect function
- - AC 24V power adapter acceptable
- Supports EFT protection 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 Degree C operation temperature
Layer 2 Features
- Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
- High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Storm Control support
- - Multicast / Unknown-Unicast
- Supports VLAN
- - IEEE 802.1Q Tagged VLAN
- - Up to 255 VLANs groups, out of 4095 VLAN IDs
- - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- - Private VLAN
- - Protocol-Based VLAN
- - MAC-Based VLAN
- - Voice VLAN
- Supports Spanning Tree Protocol
- - STP, IEEE 802.1D Spanning Tree Protocol
- - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- - BPDU Guard
- Supports Link Aggregation
- - 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (Static Trunk)
- - Maximum 5 trunk groups, up to 10 ports per trunk group
- - Up to 20Gbps bandwidth(Duplex Mode)
- Provides Port Mirror (many-to-1)
- Port Mirroring to monitor the incoming or outgoing traffic on a particular port
- Supports E.R.P.S. (Ethernet Ring Protection Switching, *Function to expect in future)
Quality of Service
- Ingress Shaper and Egress Rate Limit per port bandwidth control
- 8 priority queues on all switch ports
- Traffic classification
- - IEEE 802.1p CoS
- - IP TOS / DSCP / IP Precedence
- - IP TCP/UDP port number
- - Typical network application
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Supports QoS and In/Out bandwidth control on each port
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IGMP Snooping v1, v2 and v3
- Supports MLD Snooping v1 and v2
- Querier mode support
- IGMP Snooping port filtering
- MLD Snooping port filtering
- MVR (Multicast VLAN Registration)
Security
- IEEE 802.1x Port-Based / MAC-Based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- TACACS+ login users access authentication
- RADIUS / TACACS+ users access authentication
- IP-Based Access Control List (ACL)
- MAC-Based Access Control List
- Source MAC / IP address binding
- DHCP Snooping to filter un-trusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- Loop Protection
- IP address access management to prevent unauthorized intruder
Management
- Switch /Management Interfaces
- - Web switch management
- - Remote Telnet management
- - SNMP v1, v2c, and v3 switch management
- - SSH / SSL secure access
- Four RMON groups (history, statistics, alarms, and events)
- IPv6 IP Address / NTP / DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- Firmware upload/download via HTTP / TFTP
- DHCP Relay
- DHCP Option82
- User Privilege levels control
- NTP (Network Time Protocol)
- PTP (Precision Time Protocol)
- Link Layer Discovery Protocol (LLDP) Protocol
- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
- Reset button for system reboot or reset to factory default
- PLANET Smart Discovery Utility for deploy management
