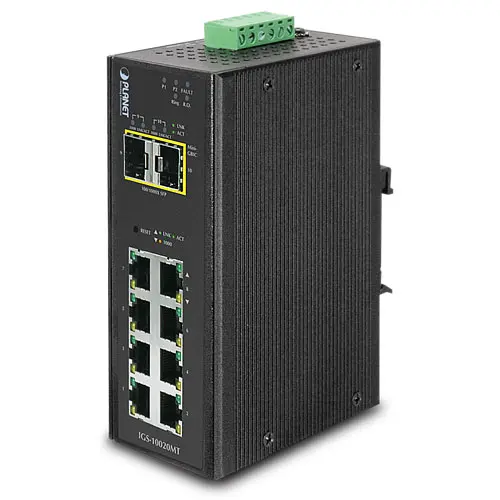

Planet IGS-10020MT

Industrial 8-Port 10/100/1000T + 2 100/1000X SFP Managed Switch (-40~75 degrees C)

Physical Port
 • 8-Port 10/100/1000Base-T RJ-45 copper
 • 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detection

Industrial Case / Installation
 • IP30 aluminum case protection
 • DIN-rail and wall mount design
 • Redundant Power Design
  - 12 to 48V DC, redundant power with polarity reverse protect function
  - AC 24V power adapter acceptable
 • Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

Layer 2 Features
 • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
 • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
 • Storm Control support
  - Multicast / Unknown-Unicast
 • Supports VLAN
  - IEEE 802.1Q Tagged VLAN
  - Up to 255 VLANs groups, out of 4095 VLAN IDs
  - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE)
  - Protocol-based VLAN
  - MAC-based VLAN
  - Voice VLAN
 • Supports Spanning Tree Protocol
  - STP, IEEE 802.1D Spanning Tree Protocol
  - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
  - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  - BPDU Guard
 • Supports Link Aggregation
  - 802.3ad Link Aggregation Control Protocol (LACP)
  - Cisco ether-channel (Static Trunk)
  - Maximum 5 trunk groups, up to 10 ports per trunk group
- Up to 20Gbps bandwidth (duplex mode)
 • Provides Port Mirror (many-to-1)
 • Port Mirroring of the incoming or outgoing traffic on a particular port
• Supports E.R.P.S. (Ethernet Ring Protection Switching)

Quality of Service
 • Ingress Shaper and Egress Rate Limit per port bandwidth control
 • 8 priority queues on all switch ports
 • Traffic classification
  - IEEE 802.1p CoS
  - IP TOS / DSCP / IP Precedence
  - IP TCP/UDP port number
  - Typical network application
 • Strict priority and Weighted Round Robin (WRR) CoS policies
 • Supports QoS and In/Out bandwidth control on each port
 • Traffic-policing policies on the switch port
 • DSCP remarking



Multicast
 • Supports IGMP Snooping v1, v2 and v3
 • Supports MLD Snooping v1 and v2
 • Querier mode support
 • IGMP Snooping port filtering
 • MLD Snooping port filtering
 • MVR (Multicast VLAN Registration)

Security
 • IEEE 802.1x Port-based / MAC-based network access authentication
 • Built-in RADIUS client to co-operate with the RADIUS servers
 • TACACS+ login users access authentication
 • RADIUS / TACACS+ users access authentication
 • IP-based Access Control List (ACL)
 • MAC-based Access Control List
 • Source MAC / IP address binding
 • DHCP Snooping to filter untrusted DHCP messages
 • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
 • IP Source Guard prevents IP spoofing attacks
 • Auto DoS rule to defend DoS attack
 • IP address access management to prevent unauthorized intruder

Management
 • Switch Management Interfaces
  -Web switch management
  -Remote Telnet management
  -SNMP v1, v2c, and v3 switch management
  -SSH / SSL secure access
 • Four RMON groups (history, statistics, alarms, and events)
• IPv6 IP Address / NTP / DNS management
 • Built-in Trivial File Transfer Protocol (TFTP) client
 • BOOTP and DHCP for IP address assignment
 • Firmware upload/download via HTTP / TFTP
 • DHCP Relay
 • DHCP Option 82
 • User Privilege levels control
 • NTP (Network Time Protocol)
 • Link Layer Discovery Protocol (LLDP) Protocol
 • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
 • Reset button for system reboot or reset to factory default
 • PLANET Smart Discovery Utility for deploy management
