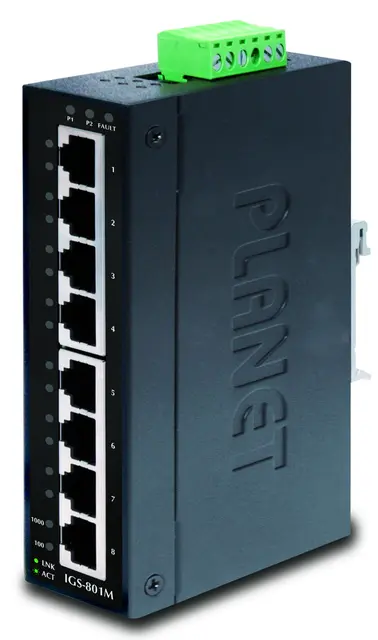

PLANET IGS-801M

8-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch with non-blocking wire-speed performance and new slim type with IP-30 metal shape for easily deployment in Heavy Industrial demanding environments.

Husk strømforsyning hvis dette ikke er tilgjengelig fra før.

Remote and Centralized Management For efficient management, the IGS-801M is built with Web-Based management design to offer a user-friendly configuration interface. Affording the current network to grow and expand, the IGS-801M supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. These features provide a cost-effective way to manage the devices from the Internet whenever you are at work or at home. Fast Recovery to a Redundant Ethernet Network The IGS-801M features strong and self-recovery capability to prevent interruptions and outside intrusions. It incorporates Rapid Spanning Protocol (IEEE 802.1w RSTP) and redundant power supply system into customers' industrial automation network to enhance system reliability and uptime in the harsh factory environments. It also protects customer's industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. Key Features Physical Port • 8-Port 10/100/1000Base-T RJ-45 copper interface Layer 2 Features • Supports Auto-Negotiation and Half-Duplex / Full-Duplex modes for all 10Base-T/100Base-TX and 1000Base-T ports • Auto-MDI/MDI-X detection on each RJ-45 port • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex) • High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth • Backplane (Switching Fabric): 16Gbps • 9K Jumbo packet size support • 8K MAC Address Table • VLANs: - IEEE 802.1Q Tag-Based VLAN - Up to 64 VLANs groups, out of 4096 VLAN IDs - Port-Based VLAN • Link Aggregation - Up to 4 trunk groups - Up to 8 ports per trunk group with 16Gbps bandwidth - IEEE 802.3ad LACP (Link Aggregation Control Protocol) - Cisco ether-channel (Static Trunk) • Spanning Tree Protocol: - IEEE 802.1d classic Spanning Tree Algorithm - IEEE 802.1w Rapid Spanning Tree Protocol Quality of Service • 4 priority queues on all switch ports • Traffic classification: - IEEE 802.1p CoS - IP TOS / DSCP • Strict priority and Weighted Round Robin (WRR) CoS policies Multicast • IGMP Snooping v1 and v2 • IGMP Query mode for Multicast Media application Security • IEEE 802.1x Port-Based Authentication • Port Mirroring to monitor the incoming or outgoing traffic on a particular port Management • Remote WEB-Based management • Access through SNMP v1, v2c • SNMP Trap for alarm notification of events • Firmware upgrade through web interface • Cable Diagnostics technology • Supports PLANET Smart-DISCOVERY Utility for deploy management Industrial Case / Installation • IP-30 Aluminum case protection • DIN Rail and Wall Mount Design • Redundant Power Design • 12 to 48V DC, redundant power with polarity reverse protect function • Supports EFT protection 6000 VDC for power line • Supports 6000 VDC Ethernet ESD protection • -10 to 60 Degree C operation temperature Specification Model IGS-801M Hardware Specification Copper Ports 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports Switch Processing Scheme Store and Forward Switch Fabric 16Gbps Throughput (packet per second) 11.9Mpps Address Table 8K entries Share Data Buffer 176 kilobytes on-chip frame buffer Flow Control IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex Jumbo Frame 9Kbytes LED System: Power 1, Power 2, Fault Alarm Ports: 10/100 Link/Act 1000 Link/Act Installation DIN rail kit and wall mount ear Power Supply External Power Supply: DC 12~48V Redundant power DC 12~48V and connective removable terminal block for master and slave power Power Consumption 8.2 Watts (Full load) Case Dimension (W x D x H) IP-30, 135 x 87 x 32 mm Weight 473g Layer 2 Function System Configuration Web Browser, SNMPv1, v2c monitor, SNMP Trap Port configuration Port disable / enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable VLAN 802.1Q Tagged Based VLAN, up to 64 VLAN groups Port-Based VLAN , up to 8 VLAN groups Port trunking IEEE 802.3ad LACP / Static Trunk Support 4 groups of 8-Port trunk support QoS Traffic classification based, Strict priority and WRR 4-level priority for switching - 802.1p priority - DSCP/TOS field in IP Packet IGMP Snooping IGMP (v1/v2) Snooping, up to 256 multicast Groups IGMP Querier mode support Storm Control • Broadcast storm control • Multicast storm control • Flooded Unicast storm control SNMP MIBs RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-2863 Interface MIB Q-Bridge MIB RMON Group 1 statistics Standards Conformance Regulation Compliance FCC Part 15 Class A, CE Standards Compliance IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port trunk with LACP IEEE 802.1d Spanning tree protocol IEEE 802.1w Rapid spanning tree protocol IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control Stability testing IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) Environmental Specification Operating Temperature: -10~60 Degree C Relative Humidity: 5~90% (non-condensing) Storage Temperature: -40~85 Degree C Relative Humidity: 5~90% (non-condensing)
