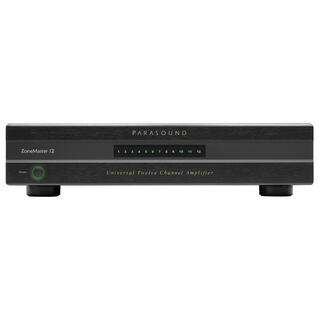

For mange år siden så Parasound at konkurrerende flerkanalsforsterkere tilbø lav effekt, manglet nødvendige bekvemmelighetsfunksjoner og til og med være upålitelige. Som Richard Schram (Direktør hos Parasound) sa: "første gang du besøker et jobbsted for å erstatte den upålitelige distribusjonsforsterkeren, taper du fortjenesten; andre gang mister du troverdigheten din. ZoneMaster-linjen til Parasound tilbyr det konkurrentene mangler. Den mest betydningsfulle ZM 12-forbedringen: Zone 1 (kanal 1 og 2) tilbyr en kraftig oppgradering til 120 watt per kanal i 8 ohm og 150 watt per kanal i 4 eller 2 ohm.

• Our new ZoneMaster models are very similar in their feature sets, differing mainly in size and number of channels.
• Universal amplifier for applications from 60 to 150 watts
• Zone 1 (channel 1&2) are higher power for more demanding applications

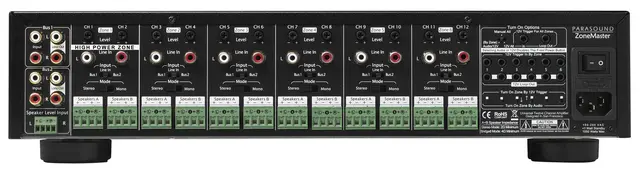

• 24 speaker connections (A and B outputs for all 12 channels)
• High current for stable operation at 2 Ohms

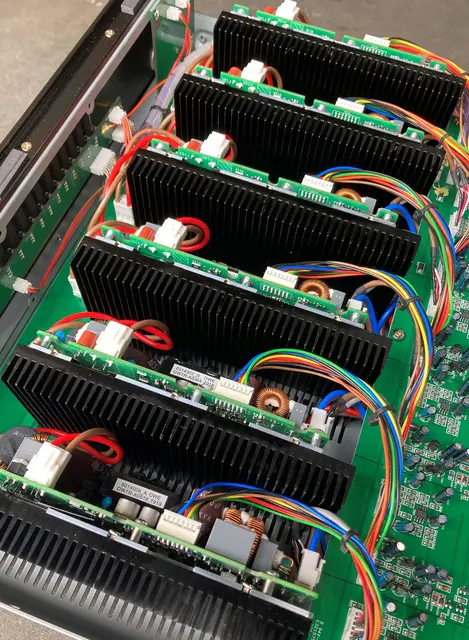

• Class AB input stage plus premium Class D power stage
• Independent audio sensing triggers, one for each zone
• 6 Independent 12 volt trigger inputs, one for each zone
• Looping 12 volt trigger outputs for each zone
• Master 12 volt trigger input to turn all zones on-off
• Speaker level input for expanding systems w/out pre out jacks
• Two bus inputs can be routed to any zone
• Bus loop output jacks for passing audio to another amp
• Summed Mono mode combines L and R for single speaker applications
• Separate level controls for all twelve channels
• Detachable speaker connectors accept up to 12 gauge wire
• Short circuit and overheat protection with front panel indicators
• 0.5 watt standby power consumption meets Energy Star & EU specs
• Compact 2U chassis

Power Output : Zone 1 (Channel 1–2) 120 watts x 2 @ 8O 150 watts x 2 @ 4O or 2O

Power Output : Zone 2-6 (Channels 3–12) 60 watts x 10 @ 8O 100 watts x 10 @ 4O or 2O Note: Power ratings are RMS, All Channels Driven (20 Hz - 20 kHz)

Minimum Speaker Impedance: A+B Outputs of a Single Channel: 2 O Note: Continuous operation at this minimum impedance might require additional ventilation for the amplifier.

Frequency Response: 20 Hz - 20 kHz, +0/-0.25 dB 5 Hz - 50 kHz, +0/-3 dB

Total Harmonic Distortion: < 0.05 % at typical listening levels < 1.0% at full power

Interchannel Crosstalk: 70 dB at 20 kHz

Total Gain: 29 dB (Level controls set to Maximum)

S/N Ratio: >112 dB, input shorted, IHF A-weighted

DC Trigger Requirements: +9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements: 2 mV audio signal

AC Power Requirement: 1550 Watts maximum 150 Watts typical (audio playing on all zones) 55 Watts idle (all zones on) 15 Watts idle (one zone on) 0.5 Watts standby 100-250 VAC 50/60 Hz (automatic)

Dimensions:Width: 17.25" (437 mm) Depth: 14.5" (369 mm) Depth, with cables: 16" (406 mm) Height, with feet: 4.15" (105 mm) Height, without feet: 3.5" (89 mm)

Weight: Net: 21 lbs (9.5kg) Shipping: 27 lbs (12.2kg)
