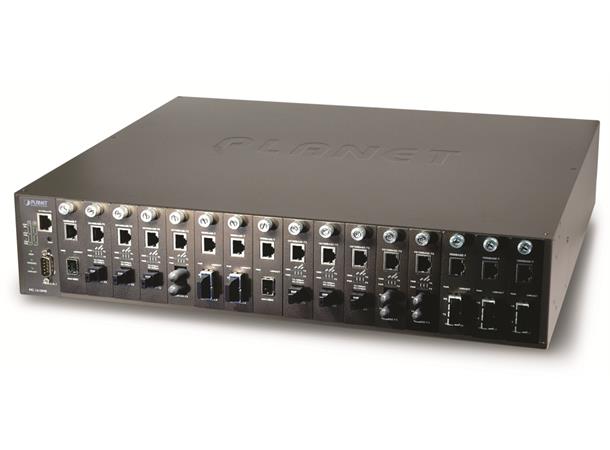

Planet MC-1600MR
16-Slot Web Smart Media Converter Chassis
Overview
The Web Smart Media Converter Chassis provides one management module and 16-Slots for optional FST-8/ GST-7 series Fast/ Gigabit Ethernet Smart Media converter installation, with hot-swappable feature and the redundant link function to avoid entire network down time. Its management function allows network administrators to monitor the slide in connection status of converter module and configures the converter module via local console port and remote Web interface.
The MC-1600MR equip with one 100~240V AC power supply unit on its standard package, both MC-1600MR and MC-1600MR48 provide one spare power supply unit slot for option redundant power supply installation. A redundant power supply is also provided to enhance the reliability with options of either 100~240V AC power supply unit or DC -48V power supply unit.
Key Features
• High quality 19" Rack-Mountable Chassis installation
• Supports up to sixteen hot-swappable slide-in modular media converter
• One 10/100Mbps Fast Ethernet port and one RS-232 port for management
• Two power slots at rear panel for redundant power support with options of 100~240V
AC or -48V DC supply
• Reduces the effort of converter¡¦s maintenance and management
• LED indicators for system and fan status, up to two fans installation of increased
air-flow for system cooling
• Supports the PLANET smart Fast Ethernet and Gigabit Ethernet Media Converter
FST-8 and GST-7 series
• Auto-MDI / MDI-X for 10/100Base-TX port
• Manageable through local console and remote Web interface
• EMI standards comply with FCC, CE class A
