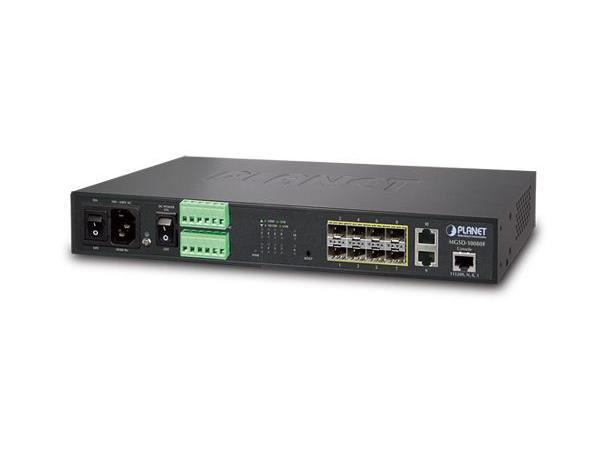

Planet MGSD-10080F
8-Port 100/1000X SFP + 2-Port 10/100/1000T Managed Metro Ethernet Switch
Physical Port•8 100/1000Base-X SFP mini-GBIC slots
•2-Port 10/100/1000Base-T Gigabit Ethernet RJ-45
•One RJ-45 console interface for basic management and setup
Redundant Power System•Redundant Power System: 100V ~ 240V AC / Dual 36V ~ 72V DC
•Active-active redundant power failure protection
•Backup of catastrophic power failure on one supply
•Fault tolerance and resilience
Digital Input / Digital Output•2 Digital Input (DI)
•2 Digital Output (DO)
•Integrates sensors into auto alarm system
•Transfer alarm to IP network via SNMP trap
Hardware Design•-10 to 60 degrees C operating temperature for DC power input only
•13-inch desktop size, 19-inch Rack-mountable
•Relay alarm for port breakdown, power failure
•Fanless design
Layer 2 Features•Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
•High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
•Storm Control support
- Broadcast / Multicast / Unicast•Supports VLAN
- IEEE 802.1Q Tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN•Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard•Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 5 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth (Duplex Mode)•Provides port mirror (1-to-1)
•Port mirroring to monitor the incoming or outgoing traffic on a particular port
•Loop protection to avoid broadcast loops
Quality of Service•Ingress Shaper and Egress Rate Limit per port bandwidth control
•8 priority queues on all switch ports
•Traffic classification
- IEEE 802.1p CoS- IP TOS / DSCP / IP Precedence- IP TCP/UDP port number- Typical network application•Strict priority and Weighted Round Robin (WRR) CoS policies
•Supports QoS and In/Out bandwidth control on each port
•Traffic-policing policies on the switch port
•DSCP remarking
Multicast•Supports IGMP Snooping v1, v2 and v3
•Supports MLD Snooping v1 and v2
•Querier mode support
•IGMP Snooping port filtering
•MLD Snooping port filtering
•MVR (Multicast VLAN Registration)
Security•IEEE 802.1x Port-based / MAC-based network access authentication
•Built-in RADIUS client to co-operate with the RADIUS servers
•RADIUS / TACACS+ users access authentication
•IP-based Access Control List (ACL)
•MAC-based Access Control List
•Source MAC / IP address binding
•DHCP Snooping to filter untrusted DHCP messages
•Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
•IP Source Guard prevents IP spoofing attacks
•IP address access management to prevent unauthorized intruder
Management•Switch Management Interfaces
- Console / Telnet Command Line Interface- Web switch management- SNMP v1 and v2c switch management- SSH / SSL and SNMP v3 secure access•Four RMON groups (history, statistics, alarms, and events)
•IPv6 IP Address / NTP / DNS management
•Built-in Trivial File Transfer Protocol (TFTP) client
•BOOTP and DHCP for IP address assignment
•Firmware upload / download via HTTP / TFTP
•DHCP Relay
•DHCP Option 82
•User Privilege levels control
•NTP (Network Time Protocol)
•Link Layer Discovery Protocol (LLDP) Protocol
•SFP-DDM (Digital Diagnostic Monitor)
•Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
•Reset button for system reboot or reset to factory default
•PLANET Smart Discovery Utility for deploy management
