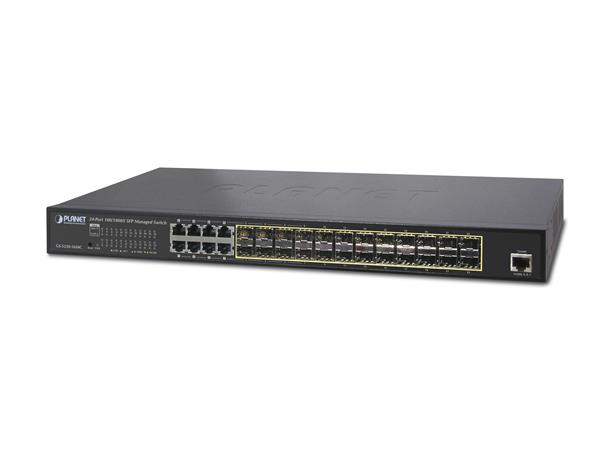

Planet GS-5220-16S8C
L2+ 24-Port 100/1000X SFP + 8-Port Shared TP Managed Switch
Physical Port•24 100/1000Base-X mini-GBIC/SFP slots
•8-port 10/100/1000Base-T Gigabit Ethernet RJ-45, shared with Port-1 to Port-8
•RJ45 to RS-232 DB9 console interface for basic management and setup
Layer 2 Features•Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
•High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
•Storm Control support
- Broadcast / Unicast / Unknown Unicast•Supports VLAN- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- IP Subnet-based VLAN- Voice VLAN
•Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard•Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 12 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth (full duplex mode)•Provides Port Mirror (many-to-1)
•Port Mirroring to monitor the incoming or outgoing traffic on a particular port
•Loop protection to avoid broadcast loops
Layer 3 IP Routing Features•Supports maximum 128 static routes and route summarization
Quality of Service•Ingress Shaper and Egress Rate Limit per port bandwidth control
•8 priority queues on all switch ports
•Traffic classification
- IEEE 802.1p CoS- TOS / DSCP / IP Precedence of IPv4/IPv6 packets- IP TCP/UDP port number- Typical network application•Strict priority and Weighted Round Robin (WRR) CoS policies
•Traffic-policing policies on the switch port
•DSCP remarking
Multicast•Supports IGMP Snooping v1, v2 and v3
•Supports MLD Snooping v1 and v2
•Querier mode support
•IGMP Snooping port filtering
•MLD Snooping port filtering
•MVR (Multicast VLAN Registration)
Security•IEEE 802.1X Authentication with Guest VLAN
•Built-in RADIUS client to cooperate with the RADIUS servers
•RADIUS / TACACS+ users access authentication
•IP-based Access Control List (ACL)
•MAC-based Access Control List (ACL)
•Source MAC / IP address binding
•DHCP Snooping to filter distrusted DHCP messages
•Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
•IP Source Guard prevents IP spoofing attacks
•IP address access management to prevent unauthorized intruder
Management•Switch Management Interfaces
- Console / Telnet Command Line Interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH / SSL secure access•Four RMON groups (history, statistics, alarms and events)
•IPv6 Address / NTP management
•Built-in Trivial File Transfer Protocol (TFTP) client
•BOOTP and DHCP for IP address assignment
•Firmware upload / download via HTTP / TFTP
•DHCP Relay and Option 82
•User Privilege levels control
•NTP (Network Time Protocol)
•Link Layer Discovery Protocol (LLDP)
•SFP-DDM (Digital Diagnostic Monitor)
•Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues for TP ports
•ICMPv6 / ICMPv4 Remote Ping
•Reset button for system reboot or reset to factory default
•SMTP / Syslog / SNMP Trap remote alarm
•System Log
•PLANET Smart Discovery Utility for deploy management
Ordering Information
GS-5220-16S8C L2+ 24-port 100/1000X SFP + 8-port Shared TP Managed Switch
