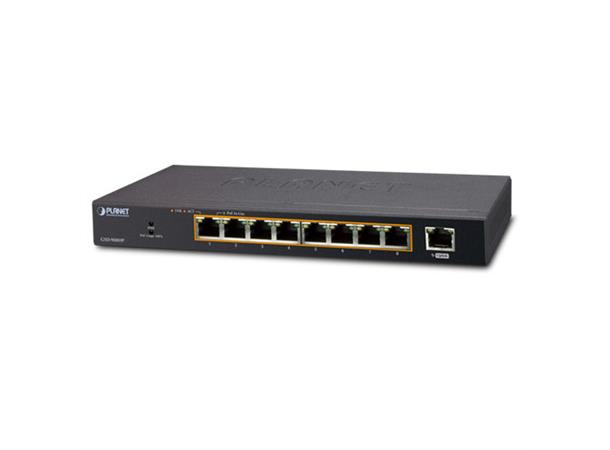

Planet GSD-908HP
8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch
Fanless / noiseless design
RJ-45 Interface
•Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
•9-Port 10/100/1000Mbps Gigabit Ethernet Switch
•8-Port supports 51V DC power to PoE Powered Device (Port 1 to port 8)
Power over Ethernet
•Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE
•120-watt PoE budget
•Up to 8 IEEE 802.3af devices powered
•Supports PoE Power up to 15.4 watts for each PoE port
•Up to 4 IEEE 802.3at devices powered
•Supports PoE Power up to 30 watts for each PoE port
•Auto detects powered device (PD)
•Circuit protection prevents power interference between ports
•Remote power feeding up to 100m
Switching
•Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
•Features Store-and-Forward mode with wire-speed filtering and forwarding rates
•IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
•Integrates address look-up engine, supporting 4K absolute MAC addresses
•192 KB packet buffer
•9K Jumbo frame supports at 1000Mbps duplex mode
•Automatic address learning and address aging
•Supports CSMA/CD protocol
Hardware
•Made of metal, desktop size and wall-mount design
•LED indicators for system power, PoE usage 100%, per port PoE In-Use (Port 1 to port 8), per port Link / Act (10/100/1000Mbps, port 1 to port 9).
•51V DC, 2.5A external power adapter
•FCC, CE Class A compliant
