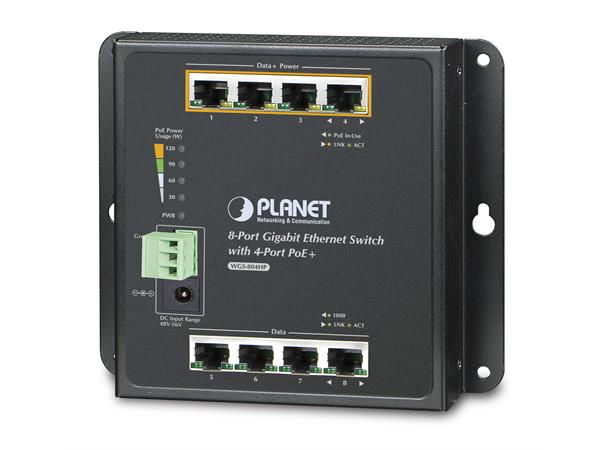

Planet WGS-804HP
8-Port 10/100/1000T Wall Mounted Gigabit Ethernet Switch with 4-Port PoE+
Physical Port•8-Port 10/100/1000BASE-T Gigabit RJ-45 copper with 4-Port IEEE 802.3at / af PoE Injector (Port-1 to Port-4)
Power over Ethernet
•Complies with IEEE 802.3at High Power over Ethernet end-span PSE
•Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
•Up to 4 ports of IEEE 802.3af / 802.3at devices powered
•Supports PoE Power up to 30.8 watts for each PoE port
•Auto detects powered device (PD)
•Circuit protection prevents power interference between ports
•Remote power feeding up to 100 meters
Layer 2 Features
•High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
•IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
•9K Jumbo frame supports in 1000Mbps duplex mode
•Automatic address learning and address aging
Industrial Case / Installation
•Compact size, wall-mounted, magnetic wall mount and DIN-rail design
•IP30 metal chassis
•Supports -10 to 60 degrees C operating temperature
•Supports EFT 6000VDC protection for power line
•Supports ESD 6000VDC Ethernet protection
•LED indicators for real-time PoE usage
•48V~56V DC input range for booting with polarity reverse protect function
