Planet Switch 5-p 10/100TX 4xPoE Layer2 Industri IP30 DIN RPS B60W

Planet Switch 5-p 10/100TX 4xPoE

Layer2 Industri IP30 DIN RPS B60W

Varenr:116804

Alt varenr:ISW-504PT

3 180,-ink. mva

-+

Bestillingsvare

Beskrivelse

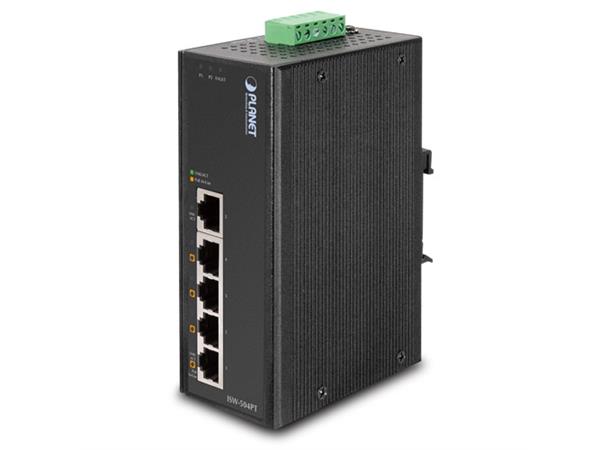

Planet ISW-504PT

5-Port 10/100Mbps with 4-Port PoE Industrial Ethernet Switch - Wide Temperature

Physical Port

5-Port 10/100Mbps RJ-45 with auto MDI/MDI-X function
4-Port support 48V DC power to PoE Powered Device (Port-1 to Port-4)

IEEE 802.3af PoE

Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 4 IEEE 802.3af devices powered
Supports PoE Power up to 15.4 Watts for each PoE port
Auto detect powered device (PD)
Circuit protection prevent power interference between ports
Remote power feeding up to 100m

Layer 2 Features

Supports Auto-Negotiation and 10/100Mbps Half / Full Duplex and Auto MDI/MDI-X
High performance Store and Forward architecture, runt / CRC filtering eliminates
erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame
flow control (Full-Duplex)
Automatic address learning and address aging
Integrated address look-up engine, support 2K absolute MAC addresses
CSMA / CD Protocol

Industrial Case / Installation

IP-30 Aluminum metal case protection
DIN Rail and Wall Mount Design
Redundant Power Design
24V or 48V DC, redundant power with polarity reverse protect function
Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 Degree C operation temperature
