Planet Switch 16-p Gigabit 16xPoE+

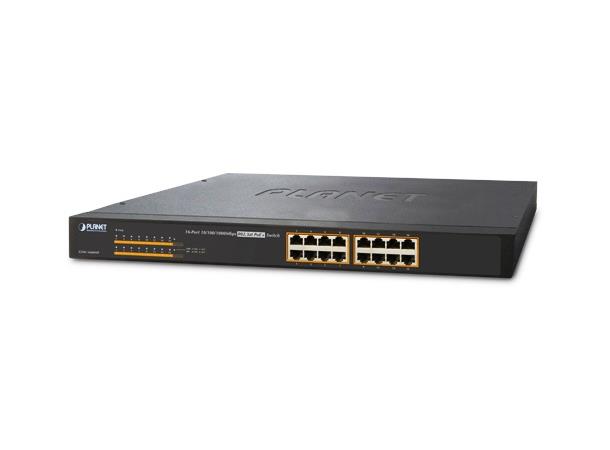

Planet GSW-1600HP

16-Port 10/100/1000Mbps 802.3at PoE+ Ethernet Switch

Interface•16-Port 10/100/1000Mbps Gigabit Ethernet RJ-45 ports
•Each port supports 52V DC power to PoE Powered Device
Power over Ethernet•Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet
•Up to 16 IEEE 802.3af / IEEE 802.3at devices powered
•Supports PoE Power up to 30 Watts for each PoE port
•Auto detect powered device (PD)
•Circuit protection prevents power interference between ports
•Remote power feeding up to 100m
Switching•Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
•Flow control for Full Duplex operation and back pressure for Half Duplex operation
•Integrates address look-up engine, supporting 8K absolute MAC addresses
•9K Jumbo Frame supports at all speed (10/100/1000Mbps)
•Automatic address learning and address aging
•Supports Pre-Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware•19-inch desktop size, 1U height
•LED indicators for PoE ready and PoE activity
•Ethernet Link Energy-Saving technology
- Link down power saving- Intelligent scales power based on cable length
