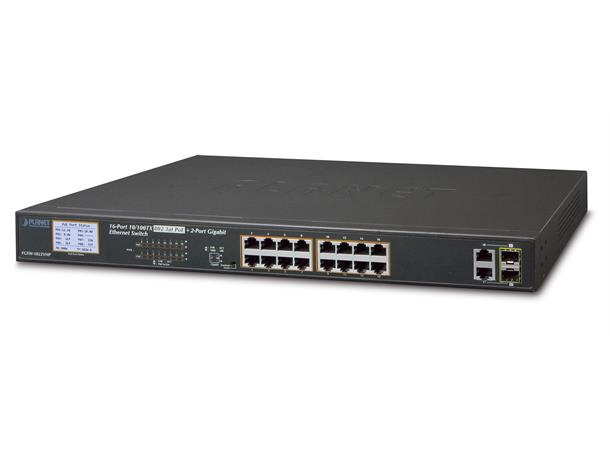

Planet FGSW-1822VHP
16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP
Combo Ethernet Switch with LCD PoE Monitor (300W)
Physical Port•16-port 10/100BASE-TX Fast Ethernet RJ45 copper
•2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP shared combo interfaces
Power over Ethernet•Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
•Up to 16 ports of IEEE 802.3af/802.3at devices powered
•Supports PoE Power up to 30.8 watts for each PoE port
•Each port supports 54V DC power to PoE Powered Device
•300-watt PoE budget
•Auto detects powered device (PD)
•Circuit protection prevents power interference between ports
•Remote power feeding up to 100m with standard mode
Switching•Hardware based 10/100Mbps or 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
•Flow control for full duplex operation and back pressure for half duplex operation
•Integrates address look-up engine, supporting 4K absolute MAC addresses
•IEEE 802.1Q VLAN transparency
•Hardware DIP switch for “Standard” and “VLAN” mode selection, the “VLAN” mode for IP surveillance application
• Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
•Automatic address learning and address aging
Hardware•19-inch desktop size, 1U height, rack mountable
•LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
•LCD monitor for system status and PoE usage status display
•2 silent fans to provide stable and efficient power performance
•Supports Contact Discharge of ±4KV DC and Air Discharge of ±6KV DC for Ethernet ESD protection
•Supports ±4KV Surge Immunity
