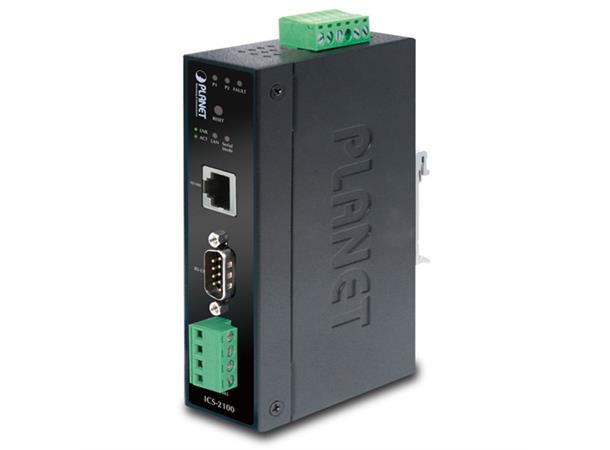

Planet ICS-2100
Industrial RS-232/ RS-422/ RS-485 over Ethernet Media Converter
NB! Power er ikke inkludert
• Serial Interface
–One RS-232 port and one RS-422/485 port to 10/100Base-TX Media
Conversion
–Cost effective solution for RS-232/ RS-422/ RS-485 to Ethernet application
–Supports RS-232 with DB9 interface, 4-wire RS-422 or 2-wire RS-485 with terminal
block operation
–Asynchronous serial data rates up to 230400bps
• Ethernet Interface
–Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX standard
–Supports auto MDI/MDI-X function on RJ-45 Port for ICS-2100
• Smart Functions
–Standard TCP/IP interface and versatile operation modes
–Software Protocol supports ARP, ICMP,TCP/IP, UDP, HTTP server, DHCP client, Telnet
server/client
–Built-in IP-Based Web interface for remote management
–Serial Operation mode selected via Web management
–Pair Connection mode for connecting two serial devices over a network
–PLANET Smart Discovery utility automatically finds the client devices on the
network
–Firmware upgrade via HTTP protocol
• Hardware
–LED indicators for easy network diagnose
–Reset Button at the front panel for reset to factory default
• Industrial Case / Installation
–IP-30 Metal case protection
–DIN Rail and Wall Mount Design
–12 to 48V DC, Redundant power with polarity reverse protect function and
connective removable terminal block for master and slave power
–Supports EFT protection 6000 VDC for power line
–Supports 6000 VDC Ethernet ESD protection
–-10 to 60 Degree C operation temperature
