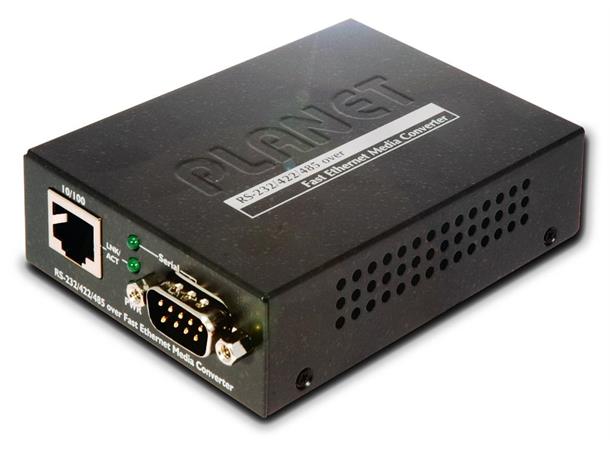

Planet ICS-100
RS-232 / RS-422 / RS-485 over Fast Ethernet
Serial Interface
• One RS-232 / 422 / 485 port to one 10/100Base-TX or 100Base-FX Media Converter
• Cost effective solution for RS-232 to Ethernet application
• Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation
• Asynchronous serial data rates up to 921600b/s
Ethernet Interface
• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX standard
• Supports auto MDI/MDI-X function on RJ-45 Port
Smart Functions
• Standard TCP / IP interface and versatile operation modes
• Software Protocol Support ARP, ICMP,TCP / IP, UDP, HTTP server, DHCP client,
Telnet server/client
• Built-in IP-Base Web interface for remote management
• Serial Operation mode selected via Web management
• Pair Connection mode for connecting two serial devices over a network
• PLANET Smart Discovery utility automatically finds PLANET devices on the network
• Firmware upgrade via HTTP protocol
Hardware
• Compact size for easy Installation:
• Standalone - Wall mountable or DIN-Rail mounting (Optional accessory)
-Co-work with PLANET MC family Media Chassis ( MC-700 / 1000R / 1500)
-LED indicators for easy network diagnose
• Reset Button at the front panel for reset to factory default
Specification
Model ICS-100
Serial Port
Interface RS-232 / RS-422 / RS-485
Connector 3-in-1 DB9
Baud rate (Data Rate) 110bps to 921Kbps
Data Bits 5,6,7,8
Stop Bit 1,2
Flow Control None, RTS / CTS, Xon / Xoff
Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-
RS-485(2-wire): Data+, Data-
RS-485(4-wire): Tx+, Tx-, Rx+, Rx-
Fast Ethernet Port
Standard 10/100Base-TX
Connector RJ-45
Mode -
Distance 100m
Optical Wavelength -
Cable Twisted-pair
Protection Built-in 1.5KV magnetic isolation
Hardware
LED Indicators System: Power
TP or Fiber Port: Link / Active
Serial Port: Serial port mode, RS-232, RS-422 or RS-485
Management Web Management
PLANET Smart Discovery Utility
VCOM
Operation Mode Virtual COM Port
TCP Server
TCP Client
UDP Client
Pair Connection
Dimension (W x D x H) 97 x 70 x 26 mm
Weight 200g
Power Supply External Power Adaptor 5V DC / 2A max.
Power Consumption 5.5 Watts (max)
Mechanical Metal
Environment Operating Temperature: 0~50 Degree C
Storage Temperature: -10~70 Degree C
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
Emissions FCC Class A, CE Certification Class A
Standards • IEEE 802.3 10Base-T,
• IEEE 802.3u 100Base-TX / 100Base-FX
• EIA / TIA RS-232 / 422 / 485
Regulatory Approval RoHS
Compatible Media Converter Chassis MC-700 / 1000R / 1500
Note Reset Button at the rear panel for reset to factory default
