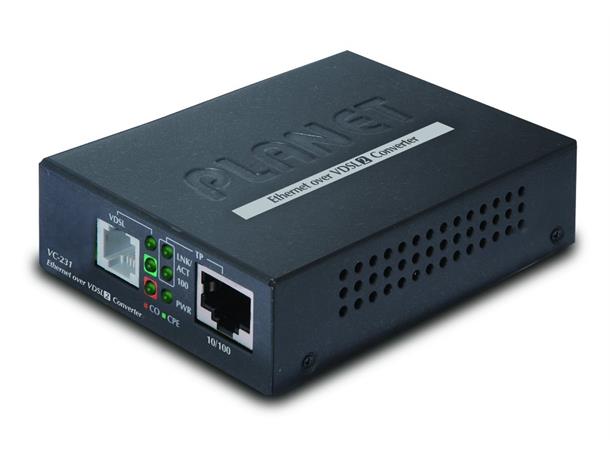

Planet VC-231
Ethernet over VDSL2 Converter (Profile 30a)
100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution
The PLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.
Implements with Existing Telephone Copper Wires
The VC-231 is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and one RJ-11 phone jack that is for VDSL2 connection. By using the additional Splitter from package of VC-231, the splitter can provide POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-231 with additional splitter into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-231 is ideal to be used as an Ethernet extender to an existing Ethernet network.
Easy & Flexible Installation
The Ethernet-over-VDSL2 Converter is plug-and-play design and fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231 and a CO mode VC-231 must be setup as one pair of converters to perform the connection.
Provides Superior Upstream and Downstream Transmission Performance
The VC-231 also defines symmetric band plan for the transmission of upstream and downstream signals, the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-231 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-231 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.
Key Features
• Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
• One box design, CO / CPE selectable via DIP Switch
• Defines symmetric band plan for the transmission of upstream and downstream signals
• Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet
standards
• DMT (Discrete Multi-Tone) line coding
• Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
• One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection
• Voice and data communication can be shared simultaneously based on the existing telephone wire
• One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
• Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
• VDSL2 stand-alone transceiver for simple bridge modem application
• Advantage of minimum installation time (Simply as Plug-and-Play)
• Selectable target profile and target SNR margin
• Supports extensive LED indicators for network diagnosis
• Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500/ MC-1500R)
• Compact in size, easy installation
Avstander:
• VDSL
Twisted-pair telephone wires (AWG24 or better) up to 1.4km
Performance* (Downstream / Upstream) • 17a profile
300m -> 86/65Mbps
400m -> 86/52Mbps
600m -> 81/36Mbps
800m -> 72/19Mbps
1000m -> 60/9Mbps
1200m -> 59/6Mbps
1400m -> 50/2Mbps
• 30a profile
300m -> 100/100Mbps
400m -> 90/90Mbps
600m -> 61/40Mbps
800m -> 54/8Mbps
