Basic Component of Microsoft Teams Room System

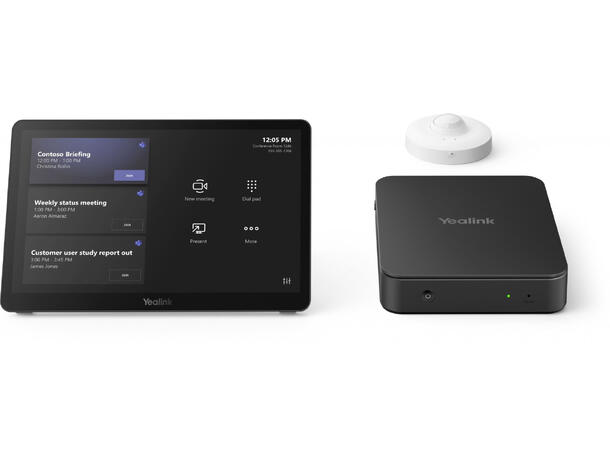

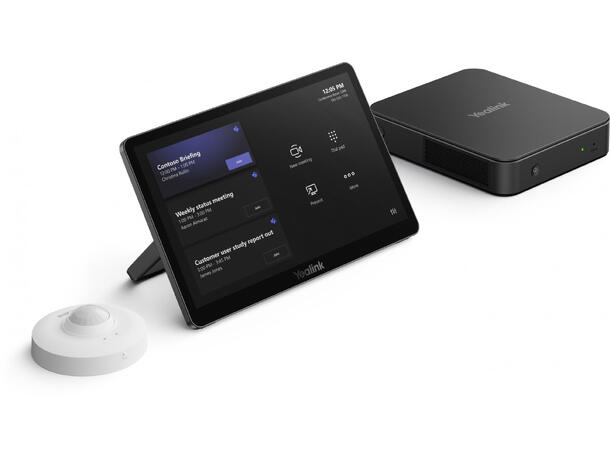

Yealink MCoreKit-C4 MS is the fundamental component of Yealink's third-generation MVC. This combination consists of the high-performance MINI-PC MCore Pro and the touch panel MTouch E2. Yealink's new generation MINI-PC MCore Pro combines aesthetics with practicality, featuring three HDMI ports and built-in EDID, providing a flexible and reliable deployment solution for conference rooms. With this combination, users can flexibly match video or audio devices, whether it's the compact and exquisite UVC34 or the intelligent PTZ camera UVC86 that offers multiple AI functions and a 12x optical zoom. They can all operate on this combination.
Key Features and Benefits
Native Microsoft Teams-tailored user interface, smooth conference experience
MTouch E2 has a built-in human motion sensor, and when participants enter the conference room, the conference system will be automatically woken up. Through the native Microsoft Teams application interface, one-click conference, call control, camera control, content sharing and other functions can be easily completed through MTouch E2 during the meeting.
Content sharing in real time
The unique wireless content sharing solution provides participants maximum flexibility and a one-click content sharing can be simply realized by plugging into the WPP30. With a high resolution of 1080P/30 frames, it provides users with a better content sharing experience. Besides, the wired content sharing is also available by connecting to the USB-C or HDMI port.
Simple to deploy, Easy to use
In the Yealink MVC series, the MCore Pro cable management solution integrates data transmission and power supply cables into one CAT5e cable, provides a straightforward solution to complicated cabling, and reduces the deployment time.
Manage your devices remotely
This solution supports Yealink Device Management Platform/Cloud Service, and you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video device peripherals on this platform remotely.
Specifications
| Parameter | Description |
|---|
| Package Content | • MCore Pro, Gen-3 Mini-PC
• MTouch E2, Gen-3 touch panel |
| Preload | • Windows 11 IoT Enterprise X64
• Windows 11 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yealink RoomConnect
|
| MCore Pro, Gen-3 Mini-PC | • 11th Gen Intel® Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management |
| MTouch E2 touch panel | • 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5 mm headset jack
• Angle adjustable bracket (28° - 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input |
| Product Dimension (W.D.H) | • MTouch E2: 202 mm x 151 mm x 100 mm, N.W/CTN: 1 kg
• MCore Pro: 168 mm x 197 mm x 39 mm, N.W/CTN: 1.35 kg
• UVC34: 380 mm x 55 mm x 55 mm, N.W/CTN: 1.28 kg |
