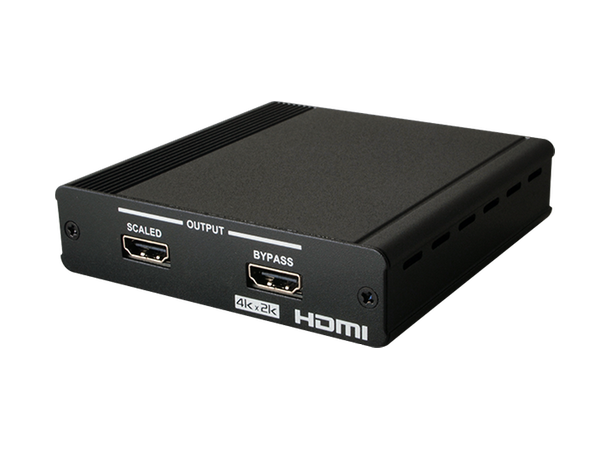

Cypress 1×2 HDMI 4K2K Video Scaler

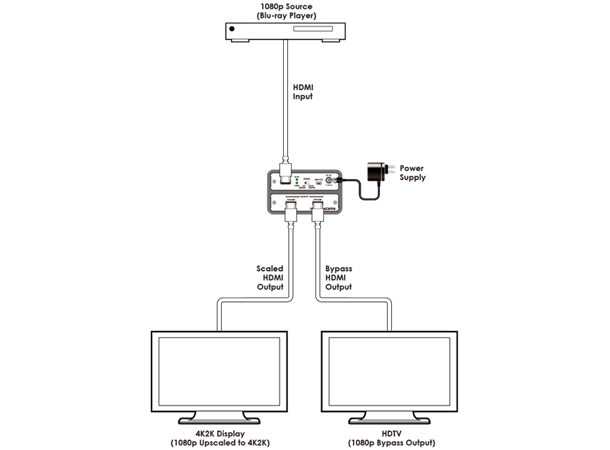

The HDMI 4K2K Scaler is designed to upscale a 1080p@24 Hz signal up to 4K2K (Ultra HD) or downscale a 4K2K signal down to 1080p@24 Hz. The device features a single HDMI input and two simultaneous HDMI outputs, a Bypass output and a Scaled output. The Bypass output will always bypass the original signal, while the Scaled output can be set to upscale to 4K2K, downscale to 1080p@24 Hz or to bypass without scaling. The HDMI 4K2K Scaler is an ideal solution for integrating a 4K2K source into a 1080p HD system or vice versa.
•Supports HDMI signal upscaling from 1080p to 4K2K or downscaling from 4K2K to 1080p
•Supports HD resolutions of 1080p@24/25/30 Hz
•Supports 4K2K resolutions of 4096×2160p@24 Hz and 3840×2160p@24/25/30 Hz
•Supports HDMI signal bypass
•Simultaneous HDMI output
•User friendly and simple to use
Inputs
1x HDMI [1x Uncompressed AV and Data]
1x USB Mini B [1x SERVICE Propriety Data]

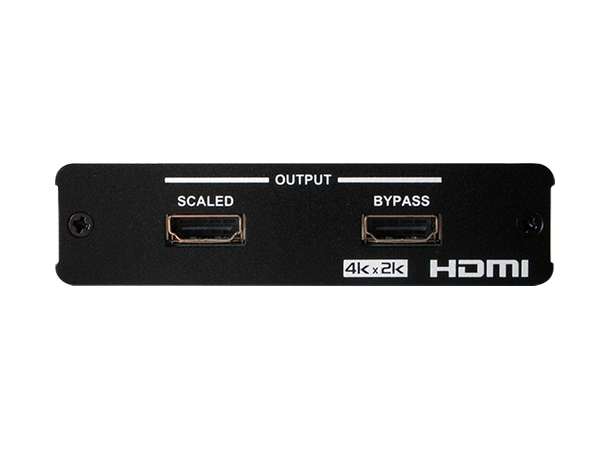

Outputs
2x HDMI [2x Uncompressed AV and Data]
Teknisk:
PSU: 5V/2.6A
Dimensions 102mm [W] x 108mm [D] x 25mm [H]
Net Weight 220g
