| Model | NVR3216 |
| Supports (IP Video input) | Network camera / ONVIF Profile S / DVR / NVR / Video encoder / Navigator |
| Input(IP video input) | 16 CH |
| Resolution( IP video input ) | CIF / VGA / D1 / 960H / 1M / 1.3M / 1080P / 3M / 5M |
| Maximum Frame Rate ( IP video input ) | 480 FPS |
| Output (Video output) | HDMI / VGA 1080P |
| Split Screen | 1 / 4 / 8 / 9 / 13 / 16 split division, sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| CE | Yes |
| FCC | Yes |
| Network video Format | H.264 |
| Maximum Network Throughput | 96Mbps |
| Recording Resolution | CIF - 5Mega |
| Frame Rate | Single channel up to 1080P 60 FPS |
| Application/ Recording Mode | Manual, schedule ( continue, event, none ) |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI |
| Alarm Notification (Recording) | Alarm notification iOS?android / E-Mail / FTP / buzzer / DO |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 16CH synchronous playback |
| Playback Resolution | CIF ~ 5MP |
| Max. frame rate (Playback) | Up to 1080P 60FPS |
| Playback Speed | Fast rewind 2× - 64× / Fast forward 2× - 64× / Step Forward / Slow motion 1/2 - 1/16 |
| Internal HDD / Swap Drive Bay | 2 × 3.5" HDD (Up to 8TB supported) |
| USB Flash Disk(Backup) | Up to 32 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| DVD DVD/RW(Backup) | External USB DVD/RW |
| Audio Input | 16 CH ( network camera ), G.711 8K |
| Audio Output | RCA × 1 |
| Network Camera Two Way Audio / IP camera 2-way audio | Yes |
| Network ports | RJ-45 Gigabit Ethernet × 1 |
| Protocols | ARP?TCP/IP?UDP?HTTP?HTTPS?SMTP?SNMP?FTP?DDNS?PPPoE?NTP?RTP? RTSP?DHCP?Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile phone | iOS / Android supported |
| RTSP service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery( Network ) | WS-Discovery and IP Scan, automatically quick IP address setup for network cameras |
| P2P(Network) | APP scan QR Code / UID connection |
| VMS support |
Artikler
Antall artikler funnet:

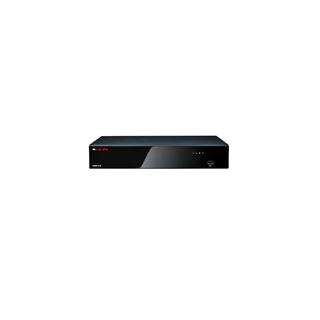

LILIN NVR3216-12TB opptaker16 kanals 5MP Nettverk video opptaker
Varenr:122778 Alt. varenr: NVR3216-12TB
Du er 5 000 kroner unna å få FRI FRAKT!
LILIN NVR3216 is a 16-channel NVR (Network Video Recorder) designed for various recording applications. The system is equipped with an ARM Cortex A9 Dual-core processor with maximum recording throughput at 144Mbps (incoming 96Mbps, outgoing 48Mbps). Parameters such as IP address and basic IP camera configurations can easily be adjusted with the LILIN setup wizard – IPScan and WS-Discovery, making the NVR3216 the easiest NVR system to use. With local VGA and HDMI display (with Full HD resolution at 1,920 x 1,080) and mouse and keyboard input available, configuring LILIN NVR is simple – an answer to meet most SMB owners’ security needs. Features- 16 Channel H.264 network camera Input
- Up to 5Mega H.264 network camera support
- Up to 1080P 60 FPS network camera support
- Up to 8TB HDD supported
- HDMI / VGA 1080P output
- Mobile phone ( iOS, Android ) solutions provided
- Network maximum input through up to 96Mbps
- Chrome, Edge, Firefox, IE, Opera, Safari supported
| Model | NVR3216 | | Supports (IP Video input) | Network camera / ONVIF Profile S / DVR / NVR / Video encoder / Navigator | | Input(IP video input) | 16 CH | | Resolution( IP video input ) | CIF / VGA / D1 / 960H / 1M / 1.3M / 1080P / 3M / 5M | | Maximum Frame Rate ( IP video input ) | 480 FPS | | Output (Video output) | HDMI / VGA 1080P | | Split Screen | 1 / 4 / 8 / 9 / 13 / 16 split division, sequence mode, freeze | | Digital zoom | Up to 64× on live and playback | | CE | Yes | | FCC | Yes | | Network video Format | H.264 | | Maximum Network Throughput | 96Mbps | | Recording Resolution | CIF - 5Mega | | Frame Rate | Single channel up to 1080P 60 FPS | | Application/ Recording Mode | Manual, schedule ( continue, event, none ) | | Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable | | Alarm event actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI | | Alarm Notification (Recording) | Alarm notification iOS?android / E-Mail / FTP / buzzer / DO | | Playback Search | Alarm event / Operation event / System event / Meta data event / Time search | | Playback Display | 16CH synchronous playback | | Playback Resolution | CIF ~ 5MP | | Max. frame rate (Playback) | Up to 1080P 60FPS | | Playback Speed | Fast rewind 2× - 64× / Fast forward 2× - 64× / Step Forward / Slow motion 1/2 - 1/16 | | Internal HDD / Swap Drive Bay | 2 × 3.5" HDD (Up to 8TB supported) | | USB Flash Disk(Backup) | Up to 32 GB supported | | Network Backup | Via HTTP / FTP / Network Places | | DVD DVD/RW(Backup) | External USB DVD/RW | | Audio Input | 16 CH ( network camera ), G.711 8K | | Audio Output | RCA × 1 | | Network Camera Two Way Audio / IP camera 2-way audio | Yes | | Network ports | RJ-45 Gigabit Ethernet × 1 | | Protocols | ARP?TCP/IP?UDP?HTTP?HTTPS?SMTP?SNMP?FTP?DDNS?PPPoE?NTP?RTP? RTSP?DHCP?Onvif Profile S | | Web (Network) | Direct internet browser access / Multiple users access | | Mobile phone | iOS / Android supported | | RTSP service | RTP UDP/ RTSP TCP supported | | IPScan / WS-Discovery( Network ) | WS-Discovery and IP Scan, automatically quick IP address setup for network cameras | | P2P(Network) | APP scan QR Code / UID connection | | VMS support |
|
