| Model | NVR3216 |
| Supports (IP Video input) | Network camera / ONVIF Profile S / DVR / NVR / Video encoder / Navigator |
| Input(IP video input) | 16 CH |
| Resolution( IP video input ) | CIF / VGA / D1 / 960H / 1M / 1.3M / 1080P / 3M / 5M |
| Maximum Frame Rate ( IP video input ) | 480 FPS |
| Output (Video output) | HDMI / VGA 1080P |
| Split Screen | 1 / 4 / 8 / 9 / 13 / 16 split division, sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| CE | Yes |
| FCC | Yes |
| Network video Format | H.264 |
| Maximum Network Throughput | 96Mbps |
| Recording Resolution | CIF - 5Mega |
| Frame Rate | Single channel up to 1080P 60 FPS |
| Application/ Recording Mode | Manual, schedule ( continue, event, none ) |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI |
| Alarm Notification (Recording) | Alarm notification iOS?android / E-Mail / FTP / buzzer / DO |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 16CH synchronous playback |
| Playback Resolution | CIF ~ 5MP |
| Max. frame rate (Playback) | Up to 1080P 60FPS |
| Playback Speed | Fast rewind 2× - 64× / Fast forward 2× - 64× / Step Forward / Slow motion 1/2 - 1/16 |
| Internal HDD / Swap Drive Bay | 2 × 3.5" HDD (Up to 8TB supported) |
| USB Flash Disk(Backup) | Up to 32 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| DVD DVD/RW(Backup) | External USB DVD/RW |
| Audio Input | 16 CH ( network camera ), G.711 8K |
| Audio Output | RCA × 1 |
| Network Camera Two Way Audio / IP camera 2-way audio | Yes |

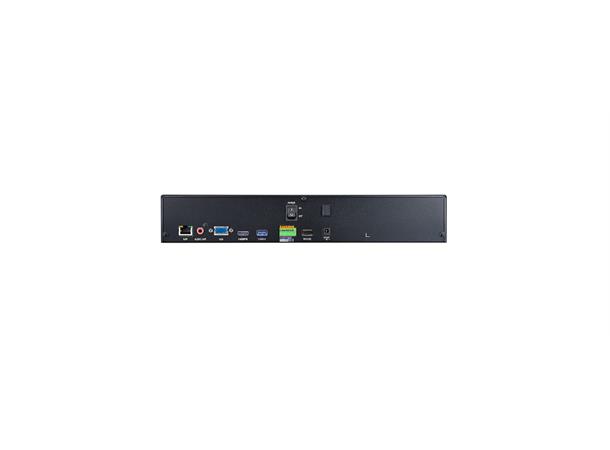

| Network ports | RJ-45 Gigabit Ethernet × 1 |
| Protocols | ARP?TCP/IP?UDP?HTTP?HTTPS?SMTP?SNMP?FTP?DDNS?PPPoE?NTP?RTP? RTSP?DHCP?Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile phone | iOS / Android supported |
| RTSP service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery( Network ) | WS-Discovery and IP Scan, automatically quick IP address setup for network cameras |
| P2P(Network) | APP scan QR Code / UID connection |
| VMS support | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backup, multiple NVRs file download and multi-channel playback |
| Ports(Alarm) | DI × 4 and DO × 1 |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Chinese (Traditional), Chinese (Simplified), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recording day | Automatic recording day calculator |
| Time | Daylight saving / NTP / External USB GPS time sync |
| PTZ protocol | HTTP / ONVIF |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| Remote Controller | Remote controller addressable up to 255 NVRs |
| Mouse | Mouse click, drag and scroll |
| Microphone | USB Mic. support ( Need additional option ) |
| Wi-Fi Dongle | WiFi and 4G external USB dongle supported ( Certified brand only ) |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 3.0 |
| WDT | Hardware watchdog timer |
| Power Supply | Adapter DC 12V, 5A, 60W × 1 |
| Operating temperature | 0? - 45? |
| Operating humidity | 5% - 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ˜2.2 kg ( Without hard drive ) |
