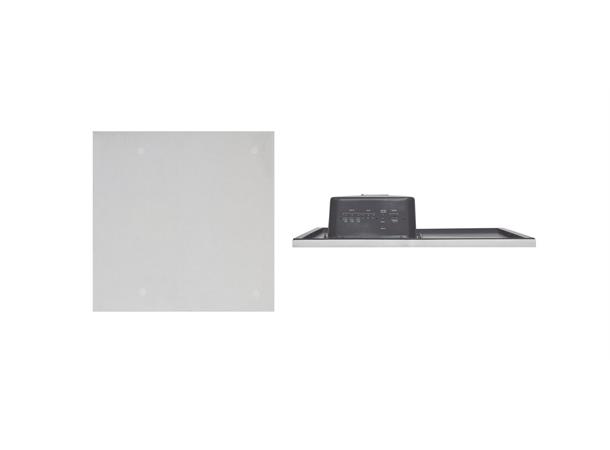

Kramer Høyttaler Tavor 8-T
8−Inch, High−Performance, Powered Ceiling Tile Speaker
Quick Facts
Type − 2−way ceiling tile speaker
Built−in Power Amplifier − 40W RMS, 110W continuous program
Woofer − 8” Kevlar(R) cone
Tweeter − Four 1” titanium domes
3 Inputs with Individual Volume Control
Master Volume Control
1 Speaker
The Tavor 8−T High Performance Powered Ceiling Tile Speaker features a 40 watt built−in class D power amplifier, three inputs, Kevlar(R) woofer, four pivoting titanium tweeters, complete K−overage ESD™ (Equal Sound Dispersion) design for almost 180 degrees of sound dispersion, magnet held grill (with two security screws) for time saving installation and a 2nd level cross−over.
Type - 2−way ceiling tile speaker.
Built-in Power Amplifier - 40W RMS, 110W continuous program.
Woofer - 8” Kevlar(R) cone.
Tweeter - Four pivoting 1” titanium domes.
3 Inputs with Individual Volume Control.
Master Volume Control.
Package - 1 Speaker.
Spesifikasjoner
DESCRIPTION: Active flat ceiling speaker.
FREQUENCY RESPONSE: 65Hz to 20kHz @−10dB, 80Hz to 20kHz @±3dB.
WOOFER: 8” (200mm) Kevlar(R) cone with rubber surround.
TWEETER: Four 0.8" titanium pivoting tweeters.
SENSITIVITY: 87dB 1W @1m.
MAX SPL: Continuous: 102dB, peak: 105dB.
POWER HANDLING: 40W RMS, 110W continuous program.
CROSSOVER FREQUENCY: 2kHz.
DIRECTIVITY FACTOR (Q): 9.43 averaged 1kHz to 10kHz.
DIRECTIVITY INDEX (DI): 9.5dB averaged 1kHz to 10kHz.
INPUT CONNECTORS: Terminal block connectors.
CONTROLS: 3 independent input level trimmer, 1 master volume trimmer.
MATERIALS: Frame, steel grills (595x595mm, 600x600mm), cable holder.
DIMENSIONS: 60cm x 60cm x 10cm (tile size), 59.5cm x 59.5cm x 10cm (tile size) for any region with suspended ceiling tiles of 595mm.
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: −40° to +70°C (−40° to 158°F).
HUMIDITY: 10% to 90%, RHL non−condensing.
WEIGHT: 8.8kg (19.3lbs) approx.
SHIPPING WEIGHT: 10.5kg (27.1lbs) approx.
ACCESSORIES: 24V DC power adapter, 2 available grills (595x595mm, 600x600mm).
COLORS: Available in white.
