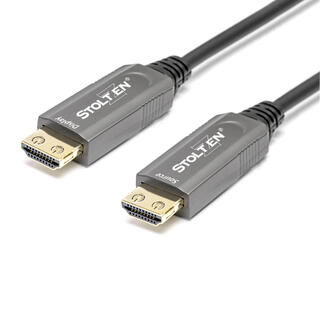

AOC HDMI 2.1 8K@60 5m
48Gbps | 4K@120hz / 8K@60hz
Hybrid cable, where video/audio is transmitted on multimode fiber cable and copper for Hot Plug detection. 4 fibers and 6 copper conductors. The cable is LSZH halogen-free.
Does not require an external power supply.
- Plug and Play
- Support HDCP
- Support 48G Bandwidth with 4Kp50/60/100/120 and 8Kp50/60
- Self-detecting function for EDID information
- Support eARC
- No loss of signal – delivering crystal clear digital images instantly.
- Dynamic HDR formats is supported.
- Hybrid optical cable with fiber and copper wire
| Item | Description |
| Units | Transmitter (Source) | Receiver (Sink) |
| HDCP & DDC | HDCP 2.2 Fully Support bi-directional EDID and HDCP communication |
| Video Bandwidth | 12 Gbps/x4Channel |
| Supported Resolution & Distance | 480p, 720p, 1080i and 1080p deep color, 4Kp50/60/100/120 and 8Kp50/60 up to 100m |
|
|
| O/E Converter | 4 channel 850 nm VCSEL array | 4 CH GaAs PD array |
| Connector Type | HDMI type A |
| Cable Type | Hybrid type with OM3 fiber and copper wire |
| Cable Outer Diameter | 4.5mm |
| Jacket Outer Material | PVC/TPU(Custom) |
| Cable Color | Black/Grey |
| Differential Input | 100 ohm (typ) |
| Power Consumption | 250mW (max) |
| Power Supply | Non external power required |
