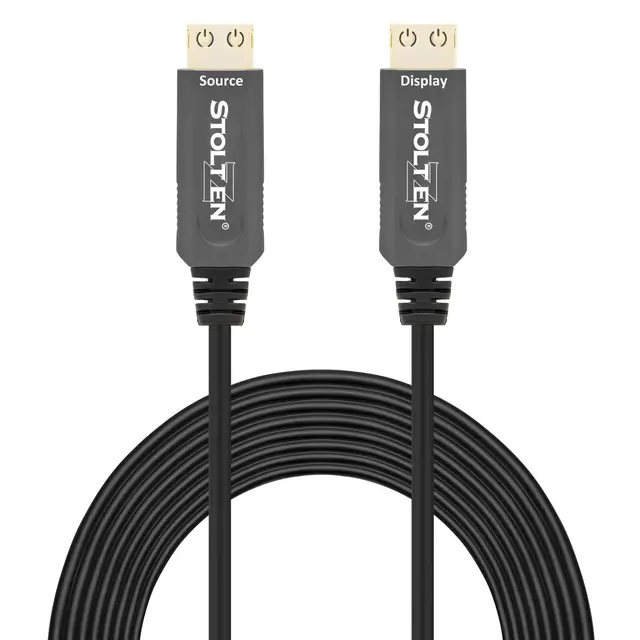

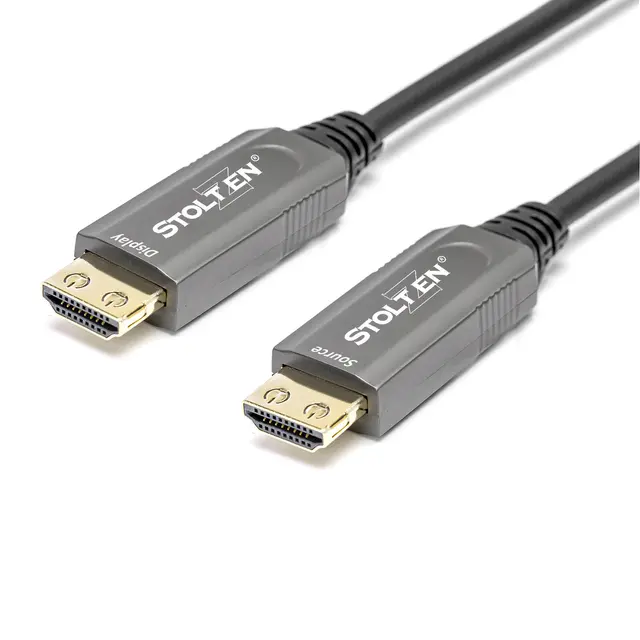

AOC HDMI 2.1 8K@60 5m

48Gbps | 4K@120hz / 8K@60hz

Hybrid cable, where video/audio is transmitted on multimode fiber cable and copper for Hot Plug detection. 4 fibers and 6 copper conductors. The cable is LSZH halogen-free.

Does not require an external power supply.

• Plug and Play

• Support HDCP

• Support 48G Bandwidth with 4Kp50/60/100/120 and 8Kp50/60

• Self-detecting function for EDID information

• Support eARC

• No loss of signal – delivering crystal clear digital images instantly.

• Dynamic HDR formats is supported.

• Hybrid optical cable with fiber and copper wire

Item	Description
Units	Transmitter (Source)	Receiver (Sink)
HDCP & DDC	HDCP 2.2 Fully Support bi-directional EDID and HDCP communication
Video Bandwidth	12 Gbps/x4Channel
Supported Resolution & Distance	480p, 720p, 1080i and 1080p deep color, 4Kp50/60/100/120 and 8Kp50/60 up to 100m
O/E Converter	4 channel 850 nm VCSEL array	4 CH GaAs PD array
Connector Type	HDMI type A
Cable Type	Hybrid type with OM3 fiber and copper wire
Cable Outer Diameter	4.5mm
Jacket Outer Material	PVC/TPU(Custom)
Cable Color	Black/Grey
Differential Input	100 ohm (typ)
Power Consumption	250mW (max)
Power Supply	Non external power required
