Key Digital KD-X222PO4K POH/HDBT/HDMI Extenders (TX/RX KIT)

3 190,-

HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length
KD-X222PO: Features power extension from Tx to Rx with Power Over HDBaseT, Rx unit does not require power supply
Signal Extension:
- Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling
- Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using third-party CAT5e/6UTP/STP cabling
- Up to 250 ft. @ 1080p /1920x1200 using KD-CAT6STP1X cabling
- Up to 230 ft. @ 1080p /1920x1200 using third-party CAT5e/6 cabling
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
HDR (High Dynamic Range): More life-like images through a greater range of luminance levels
4K/UHD Resolution: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit
Deep Color Support: Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit
3D: Support for standard 3D stereoscopic signal formats
Low Profile: Super slim chassis design
HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60f/s
EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx
Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
IR Sensor: Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight IR from remote(s) without external IR connecting block
Up/Down IR: Two channels of IR enable control to/from devices connected to Tx and Rx units
RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
Rotary Switch RS-232 Control Mode: Provides control of Tx unit as well as connectivity status
Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
CEC Support: For inter-device control between input and output HDMI channel
I2C Communication: EDID and HDCP authentication to Display and Source
Control System Support: Fully controllable by all RS-232 supported control systems via open API: Compass Control®, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.

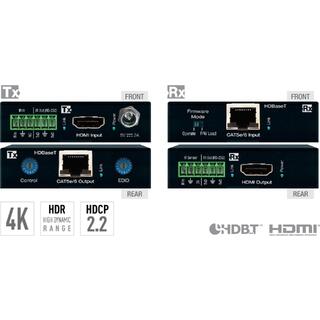

Key Digital KD-X222PO 4K POH/HDBT/HDMI Extenders (TX/RX KIT)

Tilbehør

Alternativer

Artikler

Antall artikler funnet:

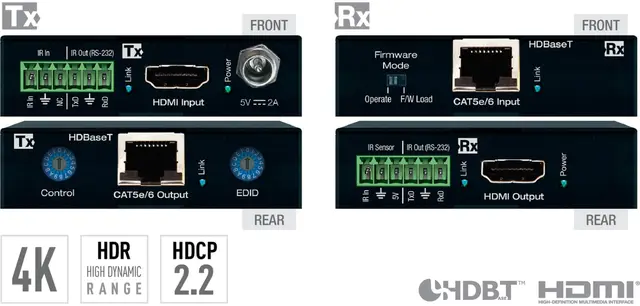

Key Digital KD-X222PO

4K POH/HDBT/HDMI Extenders (TX/RX KIT)

Varenr:120180

Alt. varenr: KD-X222PO

3 190,-

Bestillingsvare

Du er 5 000 kroner unna å få FRI FRAKT!

Beskrivelse

HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length
KD-X222PO: Features power extension from Tx to Rx with Power Over HDBaseT, Rx unit does not require power supply
Signal Extension:
- Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling
- Up to 125 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using third-party CAT5e/6UTP/STP cabling
- Up to 250 ft. @ 1080p /1920x1200 using KD-CAT6STP1X cabling
- Up to 230 ft. @ 1080p /1920x1200 using third-party CAT5e/6 cabling
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
HDR (High Dynamic Range): More life-like images through a greater range of luminance levels
4K/UHD Resolution: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit, 4096x2160 30Hz [4:2:2] 12bit, and 4096x2160 30Hz [4:4:4] 8bit
Deep Color Support: Up to UHD/4K 30Hz 4:2:2/12 bits or 60Hz 4:2:0/8 bit
3D: Support for standard 3D stereoscopic signal formats
Low Profile: Super slim chassis design
HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60f/s
EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx
Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
IR Sensor: Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight IR from remote(s) without external IR connecting block
Up/Down IR: Two channels of IR enable control to/from devices connected to Tx and Rx units
RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
Rotary Switch RS-232 Control Mode: Provides control of Tx unit as well as connectivity status
Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
CEC Support: For inter-device control between input and output HDMI channel
I2C Communication: EDID and HDCP authentication to Display and Source
Control System Support: Fully controllable by all RS-232 supported control systems via open API: Compass Control®, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
