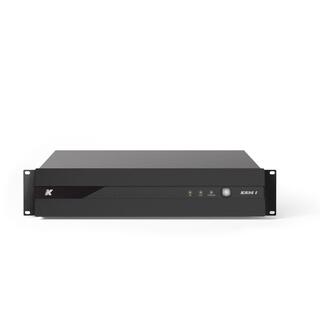

Kommander-KA14 I
The Kommander-KA14I is a fully-featured, 4x600W@2O amplifier platform with DSP highly integrated into the K-array collection ecosystem. The Kommander-KA14I offers pristine sound and complete control over the connected loudspeakers, either as a stand-alone driving unit and in conjunction with other K-array amplifiers in complex and demanding applications. The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing.
K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for loudspeakers system design and tuning of large a number of units over a wired LAN.
Type:
4ch switching mode, Class D Amplifier
Output Power:
4x 600W @ 2O
(1)Impedance:
minimum 2 O
Frequency Response:
20 Hz – 20 kHz (±1 dB)
Connections:
Input:4x XLR-F bal input4x XLR-M bal LINK outputOutput:2x PC 4/ 4-ST-7,62 speaker outputRemote connectivity:1x Ethernet RJ45 4x USB-A Wi-Fi IEEE 802.11 b/g/nPower:1 x PowerCon TRUE IN1 x PowerCon TRUE Line
Built-in DSP:
Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
Remote Control:
Wi-Fi and Ethernet dedicated APP and Desktop software
Protections:
Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter.
MAIN Operating Range:
100-240V AC, 50-60 Hz with PFC
Power Consumption:
400 W @ 4 O load, Pink noise, 1/8 rated power
