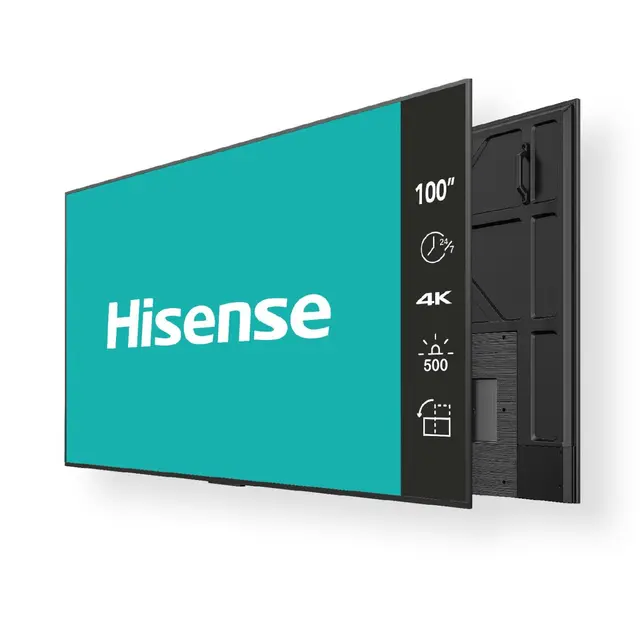

100” 4K UHD Digital Signage Display - 24/7 Operation
Hisense’s BM66AE Digital Signage Displays (43”- 100”) are perfectly fit for public transport and retail locations. Their slim body design will make them blend into their surrounding and make your on-screen messaging stand out. Their vivid and vibrant colors immerse viewers and will effectively provide them with the information they are looking for. All this with the flexibility and reliability that are required for round-the-clock broadcasting locations due to light sensors, intelligent temperature control and dual-core SOC technology for PC-less offline or cloud-based content management. You can rest assure your content will be delivered 24/7 in an elegant, vibrant and reliable way.
6
| Specifications | | |
| | |
| Digital Display Panel | | |
| | |
| Backlight | DLED | |
| Panel Type | VA | |
|
| Size | 100” | |
| Resolution | 3840 x 2160 | |
| Refresh rate | 120Hz | |
|
| Color | 1.07B | |
|
| Brightness | 500nits | |
|
| Contrast(typ) | 5000:1 (typ) | |
|
| Response time(typ) | 8ms | |
| | |
| Viewing angle(Min.) | 178°/178° | |
| Color gamut | 90% DCI-P3 | |
|
| Haze | 25% | |
| Orientation | Landscape & Portrait | |
| Lifetime | 50,000 hrs | |
|
| Operation Hours | 7Day x 24Hour | |
|
| | |
| | |
| Power | | |
|
| Input | AC 100~240V (50/60Hz) | |
|
|
| Power Consumption | 500W (Max) | |
|
|
| Standby consumption | <0.5W | |
| | |
| | |
| Physical | | |
|
| Bezel Color | Black | |
|
|

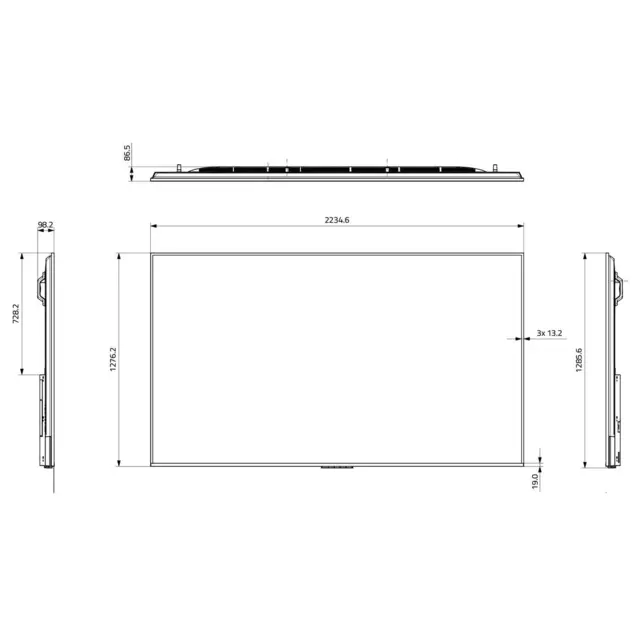

| Set Dimension(W×H×D ) | 2234.6 ×1285.6 × 86.5mm 88 × 50.6 × 3.4inch | |
| Bezel width(T/L/R/B) | 13.2mm(T/L/R),19mm(B) | |
| Net Weight | 59.6kg / 131.4lbs | |
| Packing Dimension (W×H×D ) | 2496 × 1500 × 325mm 98.3 × 59.1 × 12.8inch | |
| Packed Weight | 73.5kg / 162.1lbs | |
|

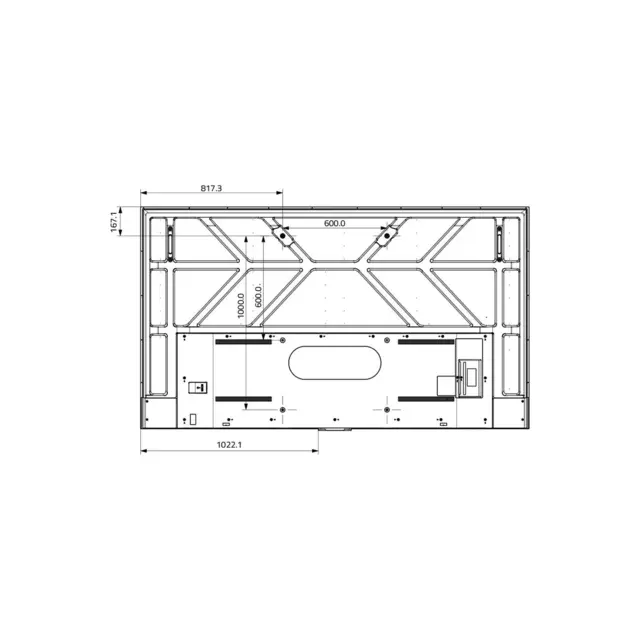

| VESA | 600mm x 600mm | |
| | |
| System | | |
| OS | Android 9.0 | |
| DDR | 2G | |
| ROM | 16G | |
| Language | English/Chinese/German/French/Polish | |
| Connectivity | | |
| WI-FI | IEEE 802.11a/b/g/n/ac (2.4G & 5G) | |
| Input | HDMI(2.0) IN x 2 DP(1.2a) IN x1 USB2.0 x 2 RS232 x 1 LAN x 1 | |
| Output | HDMI(2.0) OUT x 1 Headphone x 1 | |
| | |
| | |
| Speaker | | |
| Built in speaker | 15W x 2 | |
| | |
| Control Method | | |
|
| Remote | Yes | |
|
| RS232 | Yes | |
|
| | |
| | |
| Environment | | |
|
| Temperature | 0°~40°C | |
|
| Humidity | 10%~80% RH | |
|
| | |
| What’s in the box | |
|
| Basic | Power cord | |
| |
| Remote control | |
| |
| RS232 Cable | |
| |
| User Manual | |
| |
| Battery | |
| |
| | |
| Certification |
|
| | |
| Standard Certification | CB/CE/ERP/FCC/cTUVus/CEC/ UKCA/Energy Star | |
|
|
| EAN | | |
|
| Energy Efficiency Class | G | |
|
| | |
Dimensions
| 2234.6 x 1285.6 x 86.5mm / 88 x 50.6 x 3.4inch | |
| Weight | 59.6 kg / 131.4lbs |
