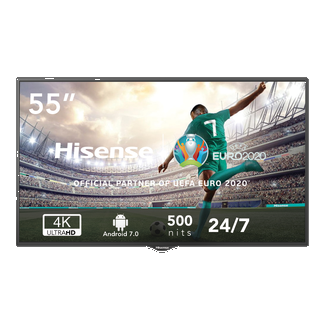

Hisense’s BM66AE Digital Signage Displays (55”)
Are perfectly fit for public transport and retail locations. Their slim body design will make them blend into their surrounding and make your on-screen messaging stand out. Their vivid and vibrant colors immerse viewers and will effectively provide them with the information they are looking for.
All this with the flexibility and reliability that are required for round-the-clock broadcasting locations due to light sensors, intelligent temperature control and dual-core SOC technology for PC-less offline or cloud based content management. You can rest assure your content will be delivered 24/7 in an elegant, vibrant and reliable way."
FEATURES COMPONENTS
• HDMI CEC support through HDMI
• Remote control IR loop (with RJ45)
• Firmware upgrade via USB/Network
• 24/7 Scheduler with Real Time Clock
• Over temperature protection User Remote
• Remote controller lock manual controller
• Key lock
• Built-in 8W x 2 speakers
• Fast standby
• World Clock setting Logo Power
• Wake up on LAN accessory cord
• Wireless Access Point for mobile devices |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Digital Signage Displays: M-series |
|
|
|
| | Model | 55BM66AE |
|
|
| Panel | Backlight | ELED |
| Size | 55 |
| Resolution | 3840*2160 |
| Refresh rate | 60HZ |
| Color | 1.07B |
|
|
| Brightness | 500nits |
| Contrast(typ) | 1100:1 (typ) |
|
|
|
| Response time(typ) | 8ms |
| Viewing angle(Min.) | 178°/178° |
| Color gamut | 72% |
| Haze | 1% |
| Orientation | Landscape & Potrait |
| MTBF | 50000hrs |
| Operation Hours | 7Day*24Hour |
| System | OS | Android 7.0 |
| CPU | ARM Cortex-A73 Dual core |
| GPU | Mali 450 |
|
| DDR | 2G |
| ROM | 16G |
| Language | English/Chinese |
| Connectivity | WIFI | Yes |
| LAN | RJ45×1 |
| SD /TF Card | / |
| Input | HDMI*1/DVI*1/VGA*1 |
| /DP*1/USB*1/RS232*1 |
| Output | DVI*1/RS232*1 |
|
| Speaker | Built in speaker | 8W*2 |
| Control Method | Remote | Yes |
| RS232 | Yes |
| Environment | Temperaturer | Storage:-20°~60° |
|
| Operation:0°~40° |
| Humidity | Storage:-10%~90% |
| Operation:10°~80% |
| Power | Input | AC 100~240V(50/60Hz) |
| Power Consumption | 120W(Max) |
| Standby Consumption | <0.5W |
| Physical | Bezel Color | Black |
| Set Dimension(WxHxD) | 1241×714.5×66mm |
| Bezel width (T/L/R/B) | 11.7mm(T),14.8mm(B),12.2m-
m(L/R) |
| Net Weight | 20.5kg |
| Packing Dimension (WxHxD) | 1374×143×847mm |
| Packed Weight | 20.5kg |
| VESA | 300*300mm |
| Certifications | Standard Ceritifcations | CB,CE,ERP |
| Media Player compability | OPS Type Compatible | Yes |
| Accessories | Basic | Power cord\Remote Control\ Battery\LOGO |
