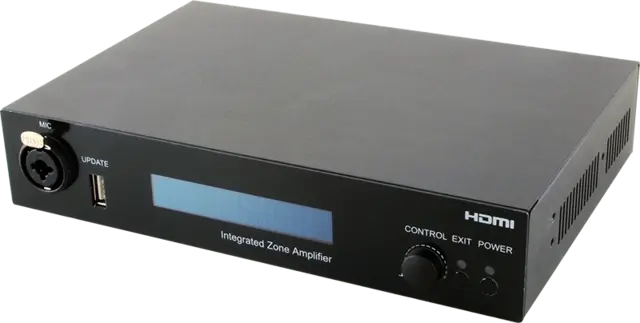

Integrated Zone Amplifier

The Integrated Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital, and HDMI with an additional microphone input. As well as speaker outputs, it boasts line level output, optical and digital outputs, and HDMI outputs for wider systems integration.

Suitable for use at musical events, sound presentation and sound amplification. With output audio sampling rate support up to 48kHz and I/O data rate support up to 24-bit, it provides a high quality sound reproduction.
Specification

30 watts per channel Digital Stereo Amplifier
Supports Digital to Analog audio Conversion (DAC) and Analog to Digital audio Conversion (ADC)
HDMI audio embedding and de-embedding
Supports input audio sampling rates up to 96kHz and output at 48kHz
Supports HDMI audio sampling rates loop-through and video bypass output
Supports a wide range of resolutions from 480i to 1080p and VGA to WUXGA(RB)
Dedicated XLR microphone input with independent volume control
Supports microphone sound being embedded into video output
Simultaneous output of sound on both digital and analog
Analog line output selectable to be either fixed or variable output level
Supports control via IR (Remote and IR Extender input), RS-232 or IP (Telnet/Web GUI)
Compact design and easy to use

Brukermanual

Cypress Forsterker 30 Watt 6xInput MIC 2xHDMI RS232 IP IR

Tilbehør

Alternativer

Artikler

Antall artikler funnet:

Cypress Forsterker 30 Watt

6xInput MIC 2xHDMI RS232 IP IR

Varenr:117752

Alt. varenr: DCT-23

4 895,-

Bestillingsvare

Du er 5 000 kroner unna å få FRI FRAKT!

Beskrivelse

Integrated Zone Amplifier

30 watts per channel Digital Stereo Amplifier
Supports Digital to Analog audio Conversion (DAC) and Analog to Digital audio Conversion (ADC)
HDMI audio embedding and de-embedding
Supports input audio sampling rates up to 96kHz and output at 48kHz
Supports HDMI audio sampling rates loop-through and video bypass output
Supports a wide range of resolutions from 480i to 1080p and VGA to WUXGA(RB)
Dedicated XLR microphone input with independent volume control
Supports microphone sound being embedded into video output
Simultaneous output of sound on both digital and analog
Analog line output selectable to be either fixed or variable output level
Supports control via IR (Remote and IR Extender input), RS-232 or IP (Telnet/Web GUI)
Compact design and easy to use

Brukermanual
