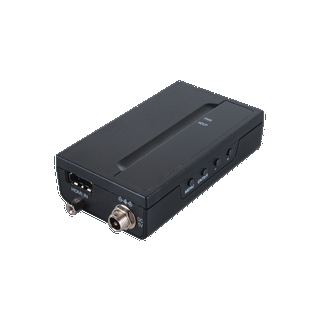

Cypress HDMI til HDMI Scaler
Inn: 480i til 1080p
Ut: 480p til 1920x1200 60HZ (Reduced Blanking)
Funksjoner:
- HDMI 1.3, HDCP 1.4 and DVI 1.0 compliant
- Scales the video signal from an HDMI source up to 1920×1200@60Hz (RB)
- Accepts a wide range of SD/HD input resolutions from 480i to 1080p
- Manual adjustments for contrast, brightness, hue and saturation
- Provides stable output timing even if no video source is present
- Maximum output pixel rate up to 165MHz
- Maximum input pixel rate up to 225MHz
- Supports 8-bit RGB and 8, 10 and 12-bit YCbCr (4:4:4) color spaces and
- Converts to 8-bit RGB for output
- Supports bypass of various audio formats including: LCPM (up to 7.1), Dolby Digital, DTS, Dolby True HD and DTS-HD Master Audio
- Maximum audio sampling rate of 192kHz
- Able to mute output audio
- Able to freeze or blank video with the option of continuing to output live audio
- Frame rate and color space conversion
- CEC bypass
- EDID management with customizable internal EDID or cloned EDID from the connected display
- Firmware can easily be updated in the field via USB
