The Triad One supports highresolution audio playback, up to 192 kHz / 24 bit, with a built-in amplifier boasting an impressive 105 dB signal-tonoise ratio and 100 watts per channel—enabling incredible sound in any room. Also included is a built-in 10-band parametric EQ delivering exceptional sound output and room optimization.
The Triad One is also a great alternative to an AVR in a bedroom, kitchen, or other location when surround sound is not a requirement. Not only does the Triad One have digital and analog audio inputs to take the audio output from a TV to power a soundbar, it has two IR outputs to control the TV and another local source, if needed.
A line-level subwoofer output rounds out the system for deep bass when connected to a powered subwoofer.
The Triad One is available in white and black, can be placed horizontally or vertically, and can be installed on a bookshelf, in a rack, or mounted behind a TV.
- Add a high-resolution, amplified audio zone to any Control4 system
- Built-in streaming music services synchronized with EA controllers
- Network control of audio and volume over a wired or WiFi connection
- Analog and digital audio inputs support audio resolutions up to 192 kHz / 24 bit
- Volume, bass, treble, 10-band parametric EQ, balance, loudness, and mono summing
- Input gain for analog source input
- Audio sensing supports programmable events based on the presence of audio
- Built-in EQ presets for Triad speakers
- Supports native Control4 streaming services including Pandora, Spotify, TIDAL, Napster, Sirius XM, Deezer, and iHeartradio • Supports built-in Control4 digital media playback including My Music, ShairBridge, and DLNA
Spesifikasjoner

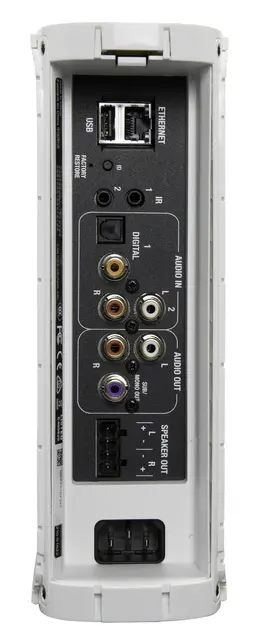

| Audio inputs | 2 inputs, 1 analog stereo and 1 digital, (S/PDIF coax or TOSLINK optical) |
| Audio outputs | 1 stereo analog out, 1 sub/mono audio out |
| USB | 1 USB 2.0 port—supports playback of media stored on USB |
| IR | 2 IR ports—3.5 mm jack |
| Ethernet | RJ45 jack for local network connection, 10/100/1000BaseT |
| WiFi | 2 internal antennas, 2.4 GHz and 5 GHz, 802.11b/g/n |
| Front power LED | 1 × RGB status LED |
| Dimensions (H x W x D) | 7.6 × 21.6 × 26 cm |
| Rated wattage/channel | 100W @ 4 O / 60W @ 8 O |
| Frequency response | +/- 0.5 dB, ref 1 kHz, 20 - 20,000 Hz, 4 or 8 O |
| THD | < 0.01% 1 kHz at all output levels below clipping |
| Noise | < -105 dB reference to rated power A-weighted |
| Analog dynamic range | >114 dB A-weighted |
| S/PDIF input | Accepts IEC 60958 standard inputs in 16/24-bit PCM stereo only, surround not supported |
| Accepted sample rates | 30-200 kHz for direct input mode; 44.1k, 48k, 96k, 192k for streaming output mode |
| Optical input TOSLINK | Standard TOSLINK levels |
| DSP audio processing | 24-bit audio processing double-precision filters |
| Signal-to-noise ratio | > 105 dB |
| Tone controls | +/- 12 dB with 650 Hz turnover frequency in 0.5 dB steps |
| 10-band EQ | Ten one-octave filters in 0.5 dB Steps, +/- 12 dB |
| Volume control | Attenuates from 0 to -80 dB and off in 0.5 dB steps |
| Loudness control | Continuously variable from 100% volume to of |
| Subwoofer output | Mono summing of stereo audio or crossover mode |
| Subwoofer crossover type | 4th order (24 dB/octave) Linkwitz-Riley |
| Crossover frequencies | 80 Hz, 90 Hz, 100 Hz, 110 Hz, 125 Hz, 140 Hz |
| Signal present detectors | -30 dB low-pass filtered |
