Control4 C4-DIN-BPS48 BUS power supply Strømforsyning DIN 240V -

Control4 C4-DIN-BPS48 BUS power supply

Strømforsyning DIN 240V -

Varenr:122679

Alt varenr:C4-DIN-BPS48

1 590,-ink. mva

Bestillingsvare

Beskrivelse

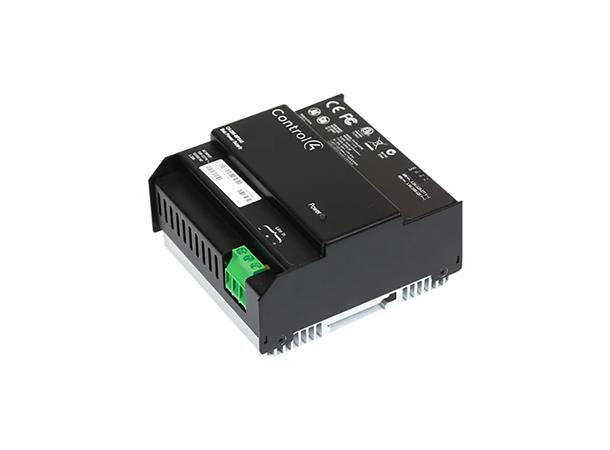

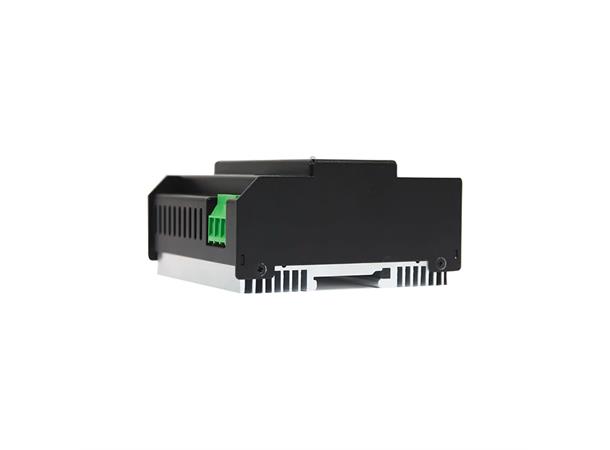

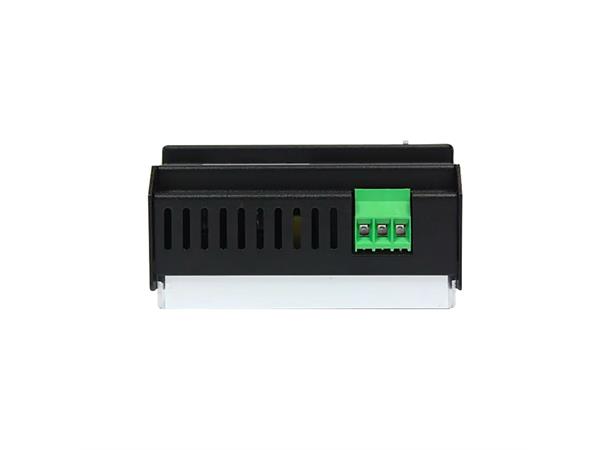

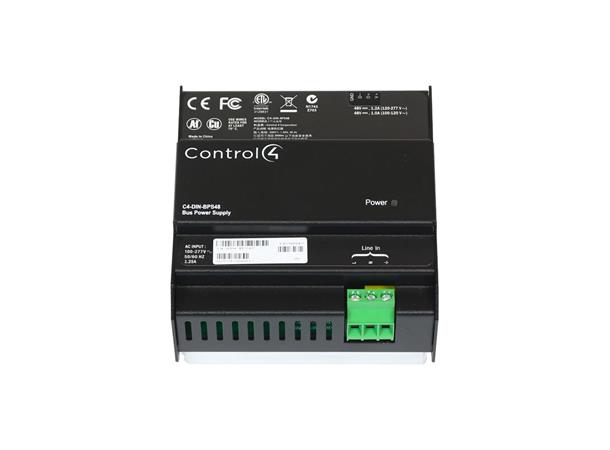

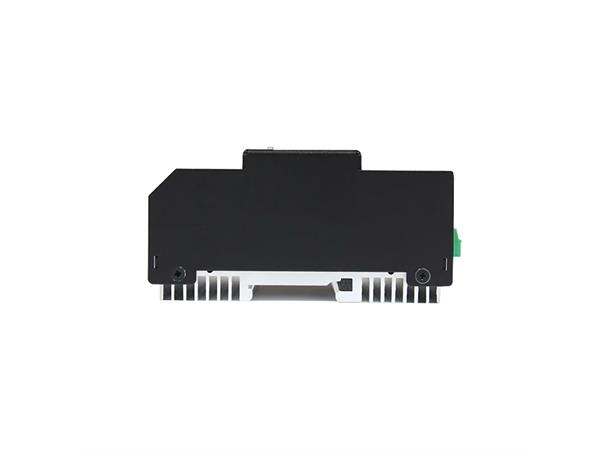

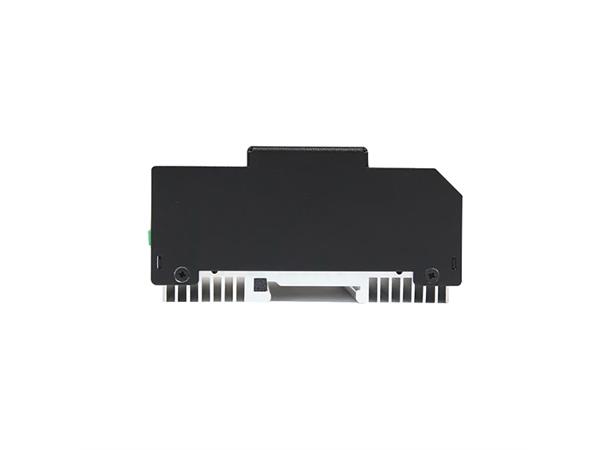

The Control4® Bus Power Supply is intended for use in a Control4 system. This device installs in a Control4 Panelized Lighting panel or in any standard DIN rail panel with 35mm rails. The Bus Power Supply provides the power to the Bus Ethernet Gateway (C4-DIN-BEG) and Control4 wired keypads (C4-KCB-xx and C4-SKCB-xx) in a Panelized Lighting system.

Features

110V to 277V Line input for power
LED for power status
Mounts in the Control4 5- or 2-Slot Panel, or in any standard DIN rail panel with 35 mm rails
Occupies 1/2 slot in a Control4 panel
See the "Keypad Bus Wiring Guide” document for details on maximum number of keypads per power supply
