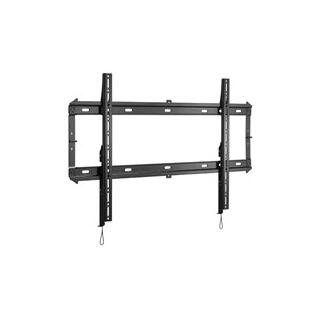

Chief RXF2
X-Large FIT™ Fixed Wall Mount
The RXF2 fixed wall mount features a unique hinged design and low-profile depth.
Features
•Hinged design reduces packaging material
•Wide open wall plate allows for easy cable routing and connection
•GlideLock with Kickstand secures TV to wall plate without tools and inlcudes kickstand for easy cable connection
•Optional storage box provides a clean installation (PAC522, PAC521P)
•Steel stud mounting possible with series PAC115 and using 2 studs only
Specifications
Certifications: TUV Approved, UL Listed
Color: Black
Lateral Shift: Depends on mounting pattern of screen
Minimum Depth: 0.8" (20 mm)
Mounting Pattern Compatibility (Universal Versions): 200 x 100mm - 855 x 500mm
Notes: Steel stud mounting possible with series PAC115 and using 2 studs only
Orientation: Landscape
Overall Dimensions (H x W x D): 521 x 965 x 20mm
Solution Type: Universal
Typical Screen Sizes: 40 - 63"
Wall Stud Compatibility (inches): 16, 24
Weight Capacity: 175 lbs (79.4kg)
