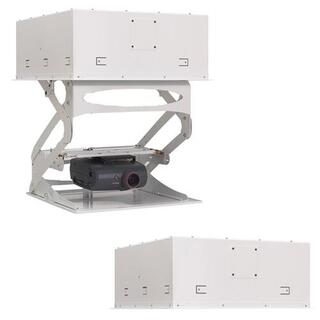

Chief SL236SPI

SMART-LIFT Automated Projector Mount.

For Suspended Ceiling installations.
The SL236 provides Extended Travel with exceptionally smooth and quiet movement and is a great option for suspended ceilings in homes and corporate offices.

Features

• Two internal outlets, one is switched on 110V units
• Plenum-rated
• Fits most installation requirements, needing only 11" of clearance above the ceiling
• Easily accommodates multiple control options
• Extended Downward Travel up to 36 with 3 stopping positions.
• UL Listed.
• For fixed suspended installations
• For International Use, 220V


Specifications

• Roll: 2° Pitch: 15° Yaw: 10°
• Ceiling Closure: 607 x 607 mm
• Ceiling Opening: 648 x 724 x 282 mm

• Extension: 914 mm

• Max Equip Size (H X W X D):(235 x 521 x 578 mm

• Overall Dimensions (H x W x D): 638 x 719 x 311 mm

• Power Requirements: 230 VAC, 50 Hz, 0.75 A

• Weight Capacity: 15.9 kg
