Chief LBM3X3U

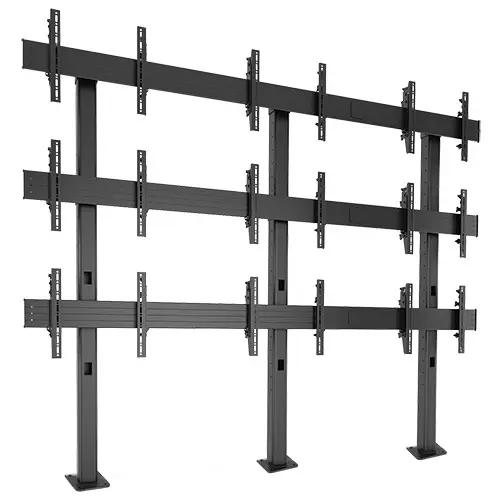

FUSION™ 3 x 3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall Chiefs FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications. Screen array configuration: 3 screens wide x 3 screens high. Features • 3 x 3 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility • Easily align displays with independent height, plumb and lateral shift adjustment • Bolt-down solution allows for a permanent solution • Integrated cable management for a clean installation Specifications Center of Display to Floor/Table Range: 16.38" (416 mm) (minimum bottom row) - 82.38" (2092 mm) (maximum top row) Certifications: UL Listed Color: Black Lateral Shift: Yes Manual Height Adjustment: Micro-adjustment up to 0.75" (19 mm) per screen Mounting Pattern Compatibility (Universal Versions): any width x 100 mm - 400 mm Orientation: Landscape Overall Dimensions (H x W x D): 90.9" x 108.9" x 9.43" (2309 x 2766 x 239 mm) Plumb Adjustment: Micro-adjustment up to 0.75" (19 mm) Screen Array Configuration: 3 x 3 Solution Type: Universal Typical Screen Sizes: 42 - 46" (Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility) Weight Capacity: 100 lbs. (45.4 kg) per screen
