Chief K3G320B
K3 Grommet-Mounted 3x2 Array

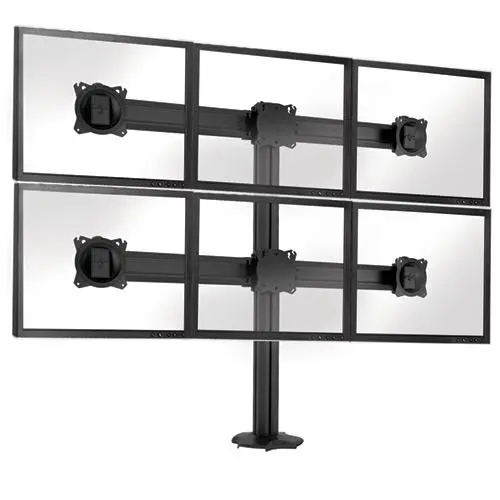

The K3G320, with its telescoping array arms, can accommodate up to six 27" monitors (3x2) or up to four 30" monitors (2x2).
Flexibility meets form and function with the Kontour™ K3 Series of elegantly designed static array mounts from Chief.
Provides an aesthetic, robust solution for call centers, security desks, IT, health care, control rooms and other multi-monitor settings.
Features•Great Ergonomic Adjustments: ?Telescoping Arm rails add 8" (20.3 cm) per Arm of lateral adjustment for larger monitors ?Centris™ heads can easily be moved from the telescoping rails to the array arms for nearly unlimited lateral adjustment, so aligning monitors horizontally is a breeze ?Patented Centris™ technology in heads provides smooth, fingertip tilt 12° in all directions ?Center column heads feature 10° of vertical tilt ?Independent height adjustment of each Arm and each Center Head along the column provides easy fine-tuning of vertical screen alignment ?Array arms can be adjusted from flat up to a 15° angle toward the user for optimization of viewing angles •Easy Installation Features: ?Product comes largely pre-assembled, so installation is fast & easy ?Teardrop hole pattern simplifies monitor mounting ?VESA 75 x 75 mm and 100 x 100 mm compatible ?Tool-free, integrated cable management
Specifications
Color: Black
Desktop Thickness Range: 0.5" - 5" (13 - 127mm)
Grommet Hole Size Range: 0.38" - 3.5" (10 - 89mm)
Mounting Method: Grommet Mount
Mounting Pattern Compatibility (Universal Versions): 75 x 75mm, 100 x 100mm
Notes: TAA Compliant
Number of Monitors: 6x 27"-diag. Displays or 4x 30"-diag. Displays
Orientation: Landscape & Portrait
Post-Installation Leveling (Roll): Yes
Screen Array Configuration: 3 x 2
Shipping Weight: 16 kg
Solution Type: Universal
Tilt: Arm Rail Heads: +/- 12°, Center Column Heads: +/- 10°
TV Width Range: 2x2: 51.2" (1301 mm) max width; 3x2: 25.6" (650 mm) max width
Typical Screen Sizes: 3x2: Up to 27"-diag.; 2x2: Up to 30"-diag.
Weight Capacity: 15 lb (6.8 kg) per monitor
